A good PCB layout for the XCL209B183DR should prioritize noise reduction and thermal management. Keep the input and output capacitors close to the IC, use a solid ground plane, and ensure good thermal conductivity to the PCB. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure output voltage stability, make sure to use the recommended output capacitor value and type, and keep the output capacitor close to the IC. Also, ensure that the input voltage is within the recommended range, and the output current is within the specified maximum rating.
The maximum ambient temperature for the XCL209B183DR is 85°C. However, the device can operate up to 125°C with derating. It's essential to ensure good thermal management and heat dissipation to prevent overheating.
Yes, the XCL209B183DR is suitable for high-reliability and automotive applications. It meets the AEC-Q100 standard for automotive reliability and is designed to operate in harsh environments. However, ensure that you follow the recommended operating conditions and design guidelines to ensure reliable operation.
To troubleshoot issues with the XCL209B183DR, start by checking the input voltage, output current, and ambient temperature. Verify that the PCB layout and component selection meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations on the output voltage. If the issue persists, consult the datasheet and application notes or contact Torex Semiconductor's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL209B183DR Overview

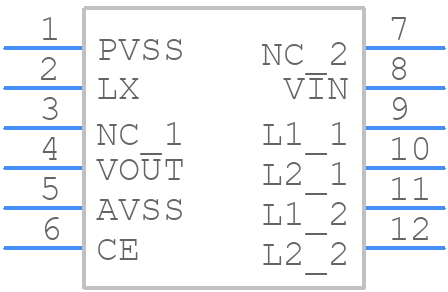

Use the download button to access the XCL209B183DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
