Torex recommends a 4-layer PCB with a solid ground plane, and to place the input and output capacitors as close to the IC as possible. Additionally, it's recommended to use a separate power plane for the input voltage and to minimize the length of the power traces.
To ensure the XCL213B333DR operates within the specified temperature range, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from heat sources. The thermal resistance of the package should also be considered during the design process.
Torex recommends using a ceramic capacitor with a value between 1uF to 10uF, and a voltage rating of at least 2 times the input voltage. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ensure stable operation.
To troubleshoot issues with the XCL213B333DR, start by verifying the input voltage and current, and ensuring that the device is operated within the specified temperature range. Check the PCB layout for any noise or signal integrity issues, and verify that the output capacitors are properly sized and placed. If the issue persists, consult the datasheet and application notes for further guidance.
Yes, the XCL213B333DR is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design guidelines, and to ensure that the device is operated within the specified temperature range and input voltage range. Additionally, the device should be qualified according to the relevant industry standards, such as AEC-Q100 for automotive applications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL213B333DR Overview

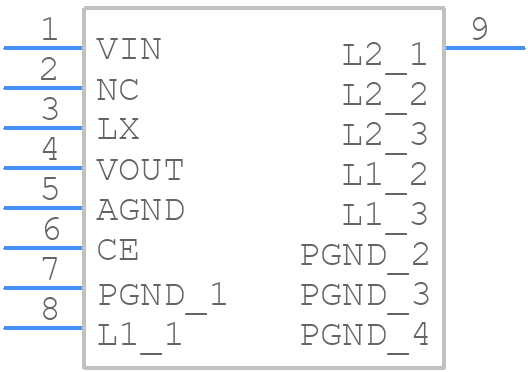

Use the download button to access the XCL213B333DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL21,
or try a keyword search, such as Switching Regulator or Controllers
