Torex recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and thermal vias can be added to improve heat dissipation.
To ensure stable output voltage, it's essential to follow the recommended input capacitor selection and placement guidelines. Additionally, consider using a soft-start circuit to reduce inrush current and ensure a stable output voltage during startup. For varying load conditions, consider using a voltage feedback loop with a suitable compensation network.
While the datasheet specifies the recommended input voltage range, it's essential to note that the XCL219B253FR-G can tolerate a maximum voltage deviation of ±10% on the input pin without compromising performance or reliability.
The XCL219B253FR-G is rated for operation up to 105°C. However, for high-temperature environments above 85°C, it's recommended to derate the output current and consider using a heat sink or thermal management solution to ensure reliable operation.
To troubleshoot output voltage oscillations, check the input capacitor selection, PCB layout, and output capacitor values. Ensure that the output capacitor is properly sized and placed close to the output pin. Also, verify that the feedback loop is properly compensated and the voltage feedback pin is not overloaded.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL219B253FR-G Overview

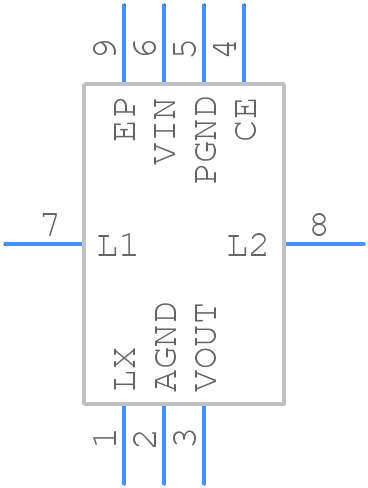

Use the download button to access the XCL219B253FR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL21,
or try a keyword search, such as Switching Regulator or Controllers
