A good PCB layout for XCL220B123FR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths. A 4-layer PCB with a dedicated power plane is recommended.
To ensure stable output voltage regulation, make sure to use the recommended output capacitor value and type, and keep the input voltage within the specified range. Also, ensure that the output voltage is set correctly using the FB pin.
The XCL220B123FR-G can operate reliably up to an ambient temperature of 85°C. However, it's recommended to derate the output current and input voltage to ensure reliable operation at higher temperatures.
While the datasheet recommends a specific inductor value and type, you can use a different inductor value or type as long as it meets the specified inductance and current rating. However, this may affect the converter's performance and efficiency.
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for voltage ripple, noise, and switching frequency.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL220B123FR-G Overview

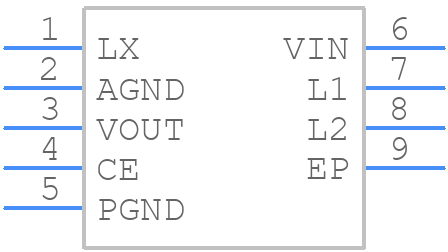

Use the download button to access the XCL220B123FR-G schematic symbol, PCB footprint, and 3D model.
