A recommended PCB layout for XCL221B101ER-G would be to keep the input and output capacitors close to the device, use a solid ground plane, and minimize the length of the input and output traces to reduce noise and EMI.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF, and to add a 10nF to 100nF ceramic capacitor in parallel with the output capacitor to filter out high-frequency noise.
The maximum ambient temperature range for XCL221B101ER-G is -40°C to +85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
Yes, XCL221B101ER-G is designed to withstand vibrations up to 10G, but it's recommended to follow proper mounting and soldering techniques to ensure the device's reliability in high-vibration environments.
To troubleshoot issues with XCL221B101ER-G, check the input voltage, output load, and PCB layout for any anomalies. Use an oscilloscope to measure the output voltage and input voltage ripple, and consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL221B101ER-G Overview

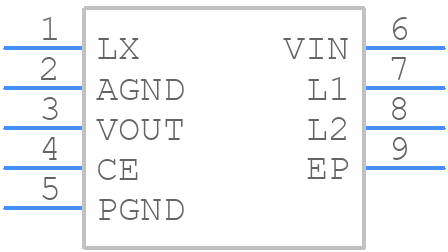

Use the download button to access the XCL221B101ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL22,
or try a keyword search, such as Switching Regulator or Controllers
