Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place decoupling capacitors close to the device and use a common ground point for the input and output capacitors.
To ensure output voltage stability, it's essential to follow the recommended output capacitor selection and layout guidelines. Use a low-ESR capacitor with a value between 1uF to 10uF, and place it close to the device. Additionally, ensure that the input voltage is within the recommended range, and the device is operated within the specified temperature range.
Although the datasheet specifies a maximum input voltage of 6.5V, Torex recommends limiting the input voltage to 6.0V to ensure reliable operation and to prevent damage to the device. Exceeding the recommended input voltage may lead to reduced performance, instability, or even device failure.
While XCL224A183D2-G is rated for operation up to 105°C, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked, and the PCB is designed to dissipate heat efficiently. Additionally, derate the output current and input voltage according to the datasheet's thermal derating guidelines.
To troubleshoot issues with XCL224A183D2-G, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component placement to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and input voltage ripple. If the issue persists, consult the datasheet's troubleshooting section or contact Torex's technical support team for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL224A183D2-G Overview

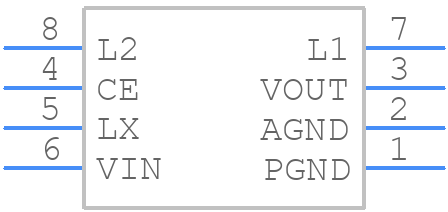

Use the download button to access the XCL224A183D2-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL22,
or try a keyword search, such as Switching Regulator or Controllers
