A good PCB layout for XCL224A333D2-G involves placing the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the IC. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature range for XCL224A333D2-G is -40°C to 85°C. However, the device can operate up to 125°C with a derated output current.
Yes, XCL224A333D2-G is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
XCL224A333D2-G has built-in overcurrent protection and thermal shutdown. However, it is recommended to add external protection such as fuses or PTC resistors to prevent damage from excessive current or heat.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL224A333D2-G Overview

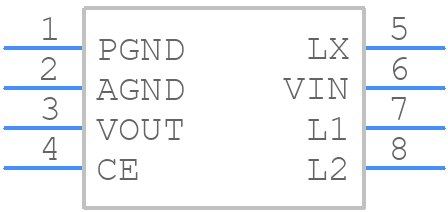

Use the download button to access the XCL224A333D2-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL22,
or try a keyword search, such as Switching Regulator or Controllers
