XCL225B0K1H2 - Torex

Description: Switching Voltage Regulators 0.5A Inductor Built-in Step-down micro DC/DC Converter

Download XCL225B0K1H2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

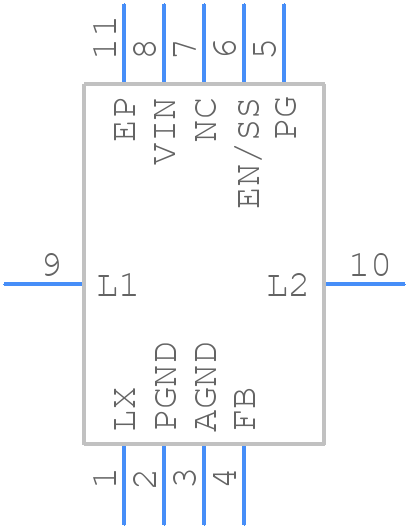

XCL225B0K1H2 - Torex - PCB symbol
click to zoom
PCB Footprints
XCL225B0K1H2 - Torex PCB footprint - Other - Other - XCL225A0K1H2-2
click to zoom
3D Models
XCL225B0K1H2 - Torex - 3D model - Other - XCL225A0K1H2-2
click to zoom

XCL225B0K1H2 Details

  • Manufacturer Part Number:

    XCL225B0K1H2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-04-25

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC10,.1SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1302 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

XCL225B0K1H2 Frequently Asked Questions (FAQs)

  • The maximum input voltage is 36V, but it's recommended to keep it below 30V for stable operation and to prevent overheating.
  • To ensure stability, it's essential to use a suitable output capacitor with a minimum capacitance of 1uF and an ESR (Equivalent Series Resistance) of 1Ω or less. Additionally, the input capacitor should be at least 1uF with an ESR of 1Ω or less.
  • The minimum input voltage required for the XCL225B0K1H2 to operate is 5.5V, but it's recommended to keep it above 6V for stable operation.
  • The XCL225B0K1H2 is rated for operation up to 125°C, but it's essential to consider the power dissipation and thermal design to prevent overheating. A heat sink or thermal pad may be necessary for high-temperature applications.
  • The power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT, where VIN is the input voltage, VOUT is the output voltage, and IOUT is the output current. Make sure to consider the maximum power dissipation rating of 1.5W.
