XCL226A0K1H2 - Torex

Description: 18V 0.5A INDUCTOR BUILT-IN STEP-

Download XCL226A0K1H2 Model

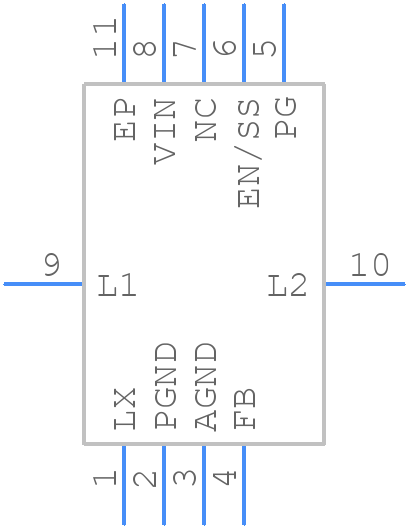

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XCL226A0K1H2 - Torex PCB footprint - Other - Other - XCL226A0K1H2-2
click to zoom
3D Models
XCL226A0K1H2 - Torex  - 3D model - Other - XCL226A0K1H2-2
click to zoom

XCL226A0K1H2 Details

  • Manufacturer Part Number:

    XCL226A0K1H2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-04-25

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC10,.1SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1302 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

XCL226A0K1H2 Frequently Asked Questions (FAQs)

  • The maximum input voltage is 36V, but it's recommended to keep it below 30V for stable operation and to prevent overheating.
  • To ensure stability, a minimum output capacitance of 1uF is recommended, and the ESR (Equivalent Series Resistance) should be less than 1 ohm. Additionally, the input capacitor should be at least 1uF with an ESR less than 1 ohm.
  • The maximum output current is 2A, but it's recommended to keep it below 1.5A for stable operation and to prevent overheating.
  • Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. It's essential to ensure that the power dissipation does not exceed the maximum rating of 1.5W.
  • The operating temperature range is -40°C to 105°C, but the junction temperature should not exceed 150°C.
