XCL226B0K1H2 - Torex

Description: Switching Voltage Regulators 18V 0.5A Inductor Built-in Step-down micro DC/DC Converter - PWM/PFM Auto Switch

Download XCL226B0K1H2 Model

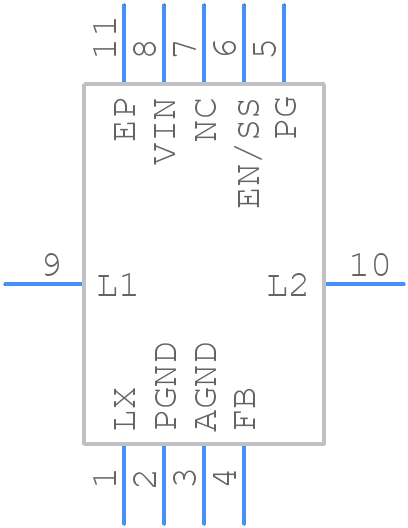

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XCL226B0K1H2 - Torex PCB footprint - Other - Other - XCL226B0K1H2-1
click to zoom
3D Models
XCL226B0K1H2 - Torex  - 3D model - Other - XCL226B0K1H2-1
click to zoom

XCL226B0K1H2 Details

  • Manufacturer Part Number:

    XCL226B0K1H2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-04-25

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC10,.1SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1302 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

XCL226B0K1H2 Frequently Asked Questions (FAQs)

  • A good PCB layout for XCL226B0K1H2 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the equivalent series resistance (ESR) of the output capacitor below 1 ohm. Additionally, the input voltage should be stable and within the recommended range.
  • The maximum ambient temperature range for XCL226B0K1H2 is -40°C to 85°C. However, the device can operate up to 125°C junction temperature, but the ambient temperature should be derated accordingly.
  • Yes, XCL226B0K1H2 is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
  • To protect XCL226B0K1H2 from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range.
