Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Torex recommends using a thermal pad or thermal via under the IC to improve heat dissipation. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material if necessary.
Although the datasheet doesn't specify a maximum voltage for the EN pin, Torex recommends keeping it within the VCC range (1.7V to 5.5V) to ensure proper operation and prevent damage to the device.
The XCL232D181KR-G is rated for operation up to 105°C, but Torex recommends derating the output current and voltage according to the temperature derating curve in the datasheet to ensure reliable operation.
Torex provides a troubleshooting guide in their application note AN-103, which covers common issues, such as output voltage deviations, oscillations, and shutdown malfunctions, along with suggested solutions and debugging techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL232D181KR-G Overview

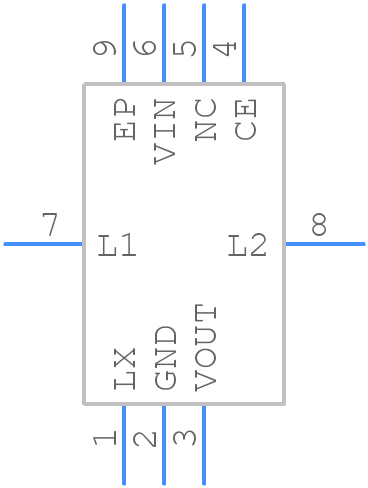

Use the download button to access the XCL232D181KR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL23,
or try a keyword search, such as Switching Regulator or Controllers
