Torex provides a recommended PCB layout in their application note AN102, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Torex recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the output voltage.
The maximum ambient temperature for the XCL237E333D2-G is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to ensure proper thermal management and heat dissipation to prevent overheating.
Yes, the XCL237E333D2-G is designed to withstand vibrations up to 10G (10Hz to 2kHz). However, it's recommended to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB.
Torex provides a troubleshooting guide in their application note AN101, which covers common issues and their solutions. It's essential to follow the recommended debugging steps and check the PCB layout, component selection, and thermal management before contacting Torex support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL237E333D2-G Overview

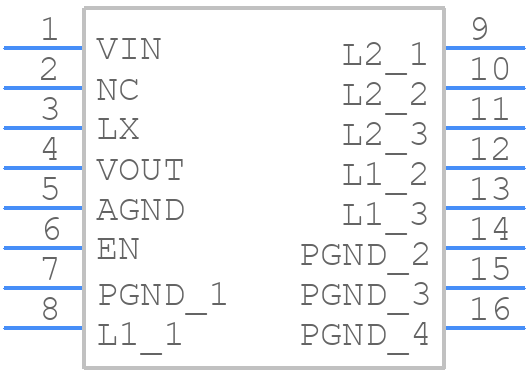

Use the download button to access the XCL237E333D2-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL23,
or try a keyword search, such as Ceramic Capacitors
