Torex recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
To ensure stable output voltage, it's essential to follow the recommended input capacitor selection and placement guidelines. Additionally, the output voltage can be stabilized by using a capacitor with a low ESR value (e.g., ceramic or polymer capacitors) and placing it close to the output pin. Furthermore, the XCL238E333D2-G has a built-in soft-start function, which helps to reduce inrush current and stabilize the output voltage during startup.
The maximum allowable ripple voltage on the input capacitor depends on the specific application and operating conditions. As a general guideline, Torex recommends keeping the input ripple voltage below 10% of the input voltage to ensure stable operation and minimize the risk of oscillation or instability.
The XCL238E333D2-G is rated for operation up to 105°C, but it's essential to consider the derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation in high-temperature environments. Additionally, the device's power dissipation and thermal resistance should be carefully evaluated to prevent overheating and potential damage.
To troubleshoot issues with the XCL238E333D2-G, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component placement to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and input voltage ripple. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Torex's technical support team if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL238E333D2-G Overview

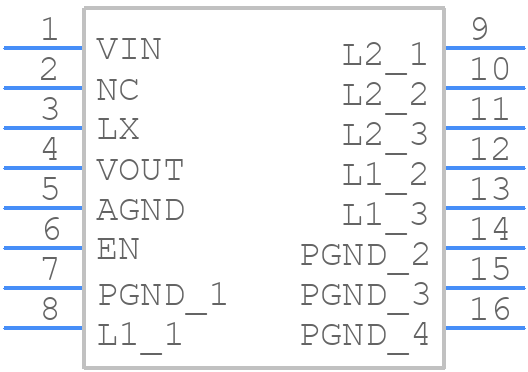

Use the download button to access the XCL238E333D2-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL23,
or try a keyword search, such as Ceramic Capacitors
