Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane is recommended. Additionally, place the input and output capacitors close to the IC and use a thermal relief pattern for the GND pin.
To ensure output voltage stability, use a minimum output capacitance of 10uF with an ESR of 100mΩ or less. Additionally, place a 1uF ceramic capacitor in parallel with the output capacitor to filter high-frequency noise. Also, ensure that the input voltage is within the recommended range and the input capacitor is properly sized.
The maximum ambient temperature for XCL240B103FR-G is 85°C. However, the device can operate up to 105°C with derating. Refer to the thermal derating curve in the datasheet for more information.
Yes, XCL240B103FR-G is suitable for high-reliability applications. Torex Semiconductor LTD follows a rigorous quality control process, and the device is built with high-reliability materials and manufacturing processes. However, it is essential to follow proper design and layout guidelines, as well as perform thorough testing and validation to ensure the device meets the specific requirements of your application.
To troubleshoot issues with XCL240B103FR-G, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, component selection, and soldering quality. Use an oscilloscope to measure the output voltage ripple and noise. If the issue persists, consult the datasheet and application notes or contact Torex Semiconductor LTD's technical support team for assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL240B103FR-G Overview

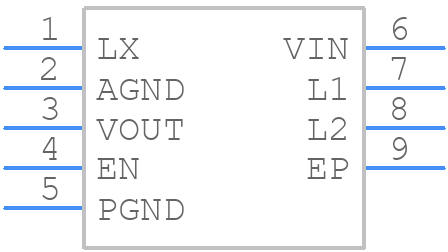

Use the download button to access the XCL240B103FR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL24,
or try a keyword search, such as Switching Regulator or Controllers
