XCL240B1A3FR-G - Torex

Description: HiSAT-COT ® Control 1A Inductor Built-in Step-Down “micro DC/DC” Converters

Download XCL240B1A3FR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

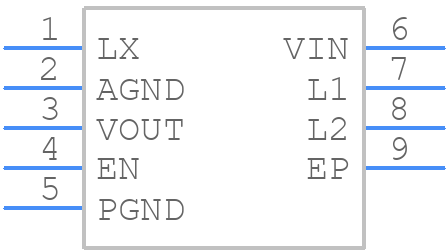

XCL240B1A3FR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XCL240B1A3FR-G - Torex PCB footprint - Other - Other - CL-2025-02
click to zoom
3D Models
XCL240B1A3FR-G - Torex - 3D model - Other - CL-2025-02
click to zoom

XCL240B1A3FR-G Details

  • Manufacturer Part Number:

    XCL240B1A3FR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCL240B1A3FR-G Overview

Use the download button to access the XCL240B1A3FR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL24, or try a keyword search, such as Switching Regulator or Controllers
