Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the PCB traces should be kept short and wide to minimize inductance and resistance.
To ensure stability, it's essential to follow the recommended capacitor values and types in the datasheet. Additionally, the output capacitor should be placed close to the IC, and the PCB layout should be designed to minimize noise and oscillations. A soft-start circuit can also be implemented to reduce inrush current and prevent output voltage overshoot.
The maximum ambient temperature range for XCL244B183D2-G is -40°C to +85°C. However, the device can operate up to +105°C with derating. It's essential to ensure proper thermal design and heat dissipation to prevent overheating and ensure reliable operation.
Yes, XCL244B183D2-G is suitable for high-reliability and automotive applications. Torex provides a range of reliability and quality certifications, including AEC-Q100, IATF 16949, and ISO 9001. However, it's essential to consult with Torex's technical support team to ensure the device meets the specific requirements of your application.
To troubleshoot issues with XCL244B183D2-G, start by verifying the PCB layout and component values against the datasheet recommendations. Check for any signs of physical damage, overheating, or electrical overstress. Use oscilloscopes and other diagnostic tools to measure the input and output voltages, currents, and temperatures. Consult Torex's application notes and technical support team for guidance on specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL244B183D2-G Overview

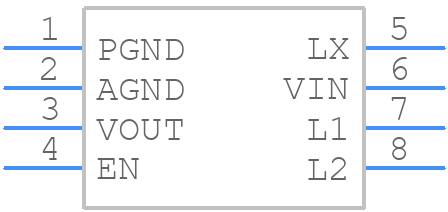

Use the download button to access the XCL244B183D2-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL24,
or try a keyword search, such as Switching Regulator or Controllers
