A good PCB layout for the XCL303A052KR-G involves placing the input capacitors close to the VIN pin, using a solid ground plane, and minimizing the distance between the IC and the output capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is essential to use the recommended output capacitors (10uF or more) and to place them close to the VOUT pin. Additionally, the input voltage should be within the recommended range, and the input capacitors should be of high quality and low ESR.
The XCL303A052KR-G can operate in an ambient temperature range of -40°C to +85°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for an extended period.
While the XCL303A052KR-G is a robust device, it is still susceptible to vibration-induced failures. To ensure reliability in high-vibration environments, it is recommended to use a vibration-dampening material, such as a silicone-based adhesive, to secure the device to the PCB.
To troubleshoot issues with the XCL303A052KR-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are of the recommended type and value, and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL303A052KR-G Overview

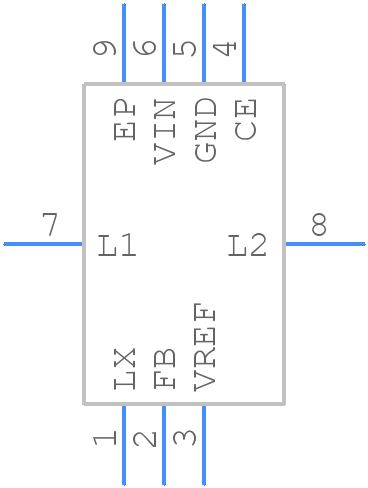

Use the download button to access the XCL303A052KR-G schematic symbol, PCB footprint, and 3D model.
