Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place decoupling capacitors close to the device and use a common ground point for the input and output capacitors.
To ensure output voltage stability, it's essential to follow the recommended output capacitor selection and placement guidelines. Use a low-ESR capacitor with a value between 1uF to 10uF, and place it close to the device. Additionally, ensure that the input voltage is within the recommended range, and the device is operated within its specified temperature range.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can lead to reduced performance, increased power consumption, or even device failure.
While XCL304A052KR-G is rated for operation up to 105°C, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked, and the ambient temperature is within the specified range to prevent thermal shutdown or device failure.
To troubleshoot issues with XCL304A052KR-G, start by verifying the input voltage, output capacitor selection, and PCB layout. Check for any signs of overheating, and ensure that the device is operated within its specified temperature range. Use an oscilloscope to monitor the output voltage and input voltage ripple. If the issue persists, consult the datasheet and application notes or contact Torex's technical support team for further assistance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
XCL304A052KR-G Overview

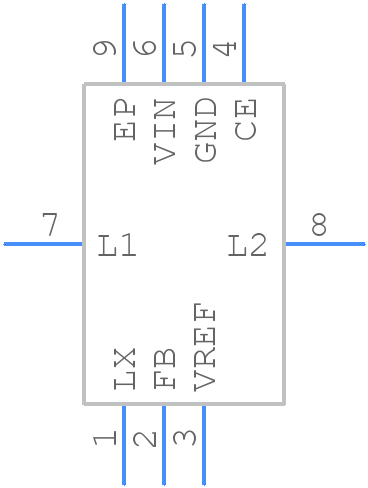

Use the download button to access the XCL304A052KR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL30,
or try a keyword search, such as Switching Regulator or Controllers
