AMD provides a PCB design guide and layout recommendations in the XCVU13P-L2FHGB2104E documentation. It's essential to follow these guidelines to ensure signal integrity, reduce noise, and meet thermal requirements. Additionally, using a PCB design tool with built-in FPGA-aware features can help optimize the layout.
To optimize power consumption, use the AMD Power Estimator (APE) tool to estimate power consumption based on your design. Implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). Also, consider using the FPGA's built-in power management features, like the Power Management Controller (PMC).
The XCVU13P-L2FHGB2104E has a high thermal design power (TDP) of 25W. Ensure proper thermal management by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal vias. Monitor the FPGA's temperature using the on-chip temperature sensor and adjust the cooling system accordingly.
AMD provides a range of security features, including bitstream encryption, authentication, and secure boot mechanisms. Implement these features to protect your IP and prevent unauthorized access. Additionally, use secure development practices, such as secure coding and secure communication protocols, to safeguard your design.
The XCVU13P-L2FHGB2104E's high-speed transceivers (GTY and GTY25) have specific requirements for PCB layout, signal integrity, and clocking. Ensure that your design meets the recommended guidelines for transmitter and receiver equalization, clocking, and signal conditioning to achieve reliable high-speed data transmission.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCVU13P-L2FHGB2104E Overview

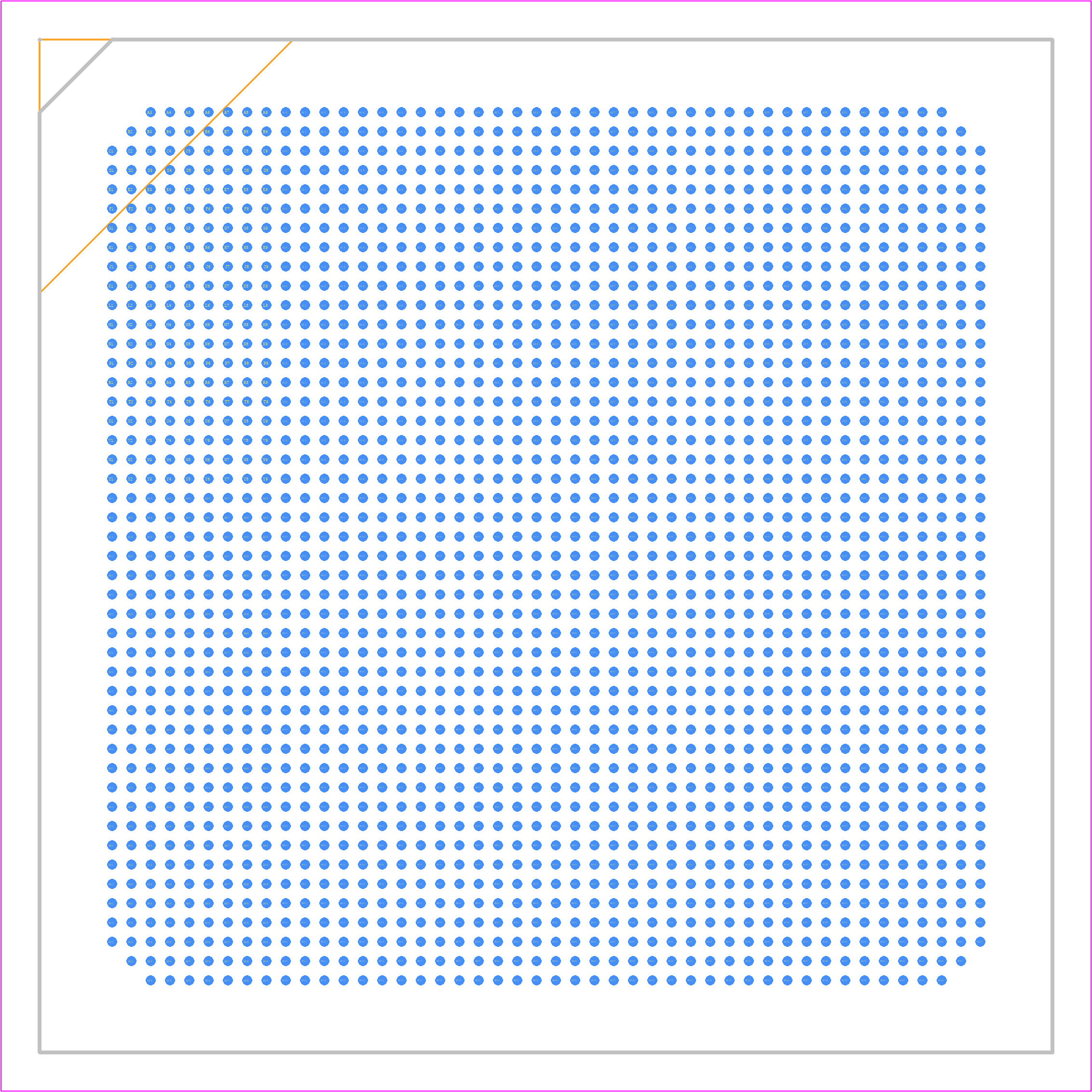

Use the download button to access the XCVU13P-L2FHGB2104E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCVU1,
or try a keyword search, such as Field Programmable Gate Arrays
