XCVU190-3FLGA2577E - AMD

XCVU190-3FLGA2577E Details

• Manufacturer Part Number:

  XCVU190-3FLGA2577E

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

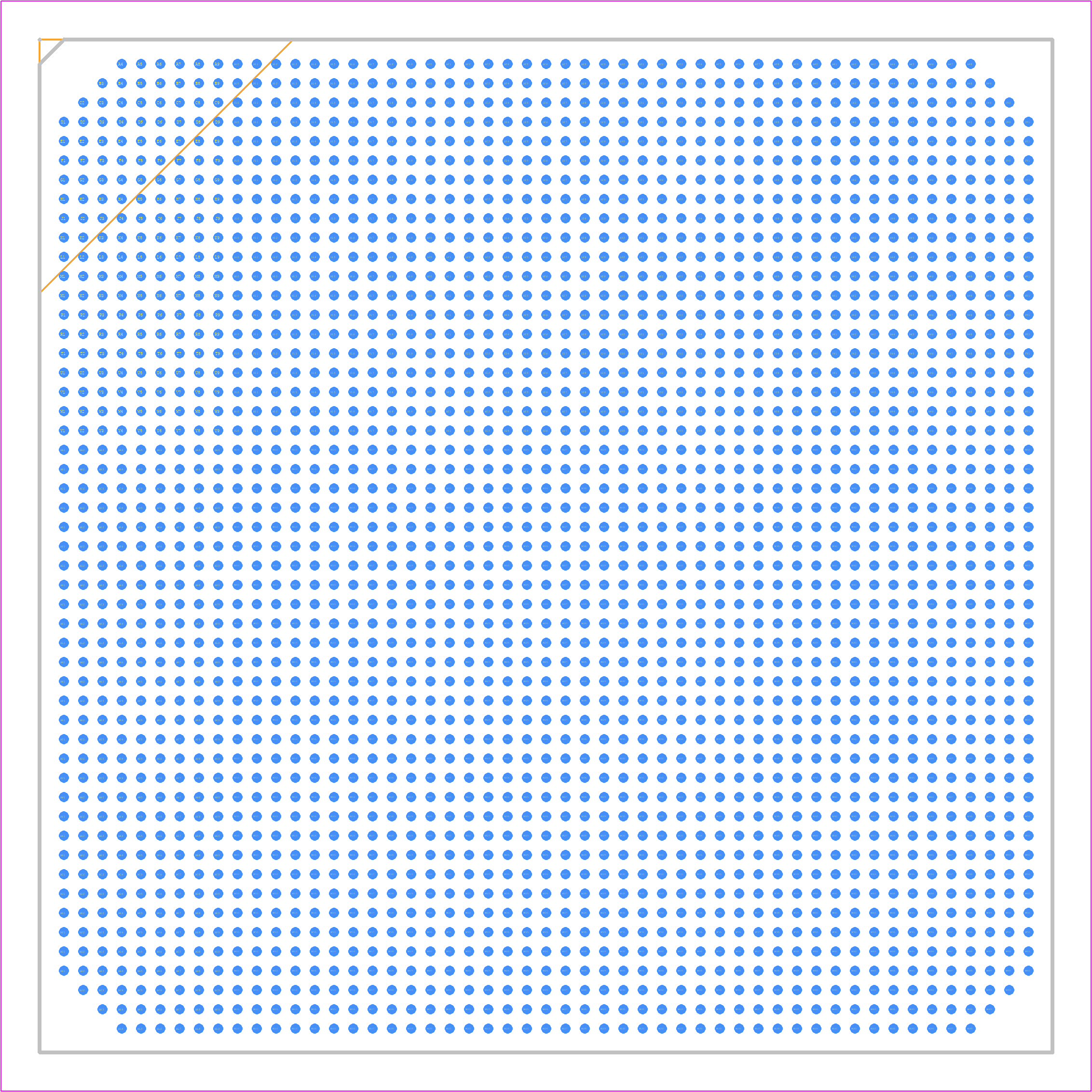

• Package Description:

  BGA-2577

• Country Of Origin:

  Taiwan

• HTS Code:

  8542.31.00.60

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  AMD

• YTEOL:

  10

• JESD-30 Code:

  S-PBGA-B2577

• JESD-609 Code:

  e1

• Length:

  52.5 mm

• Number of CLBs:

  1800

• Number of Inputs:

  702

• Number of Logic Cells:

  2349900

• Number of Outputs:

  702

• Number of Terminals:

  2577

• Operating Temperature-Max:

  100 °C

• Organization:

  1800 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA2577,51X51,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Seated Height-Max:

  4.01 mm

• Supply Voltage-Max:

  1.03 V

• Supply Voltage-Min:

  0.97 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  16 nm

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  52.5 mm
