XCVU19P-2FSVA3824E - AMD

Description: FPGA VU19P Family 8937600 Logic Units 8937600 Cells 645MHz 0.85V 3824-Pin FCBGA Tray

Download XCVU19P-2FSVA3824E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

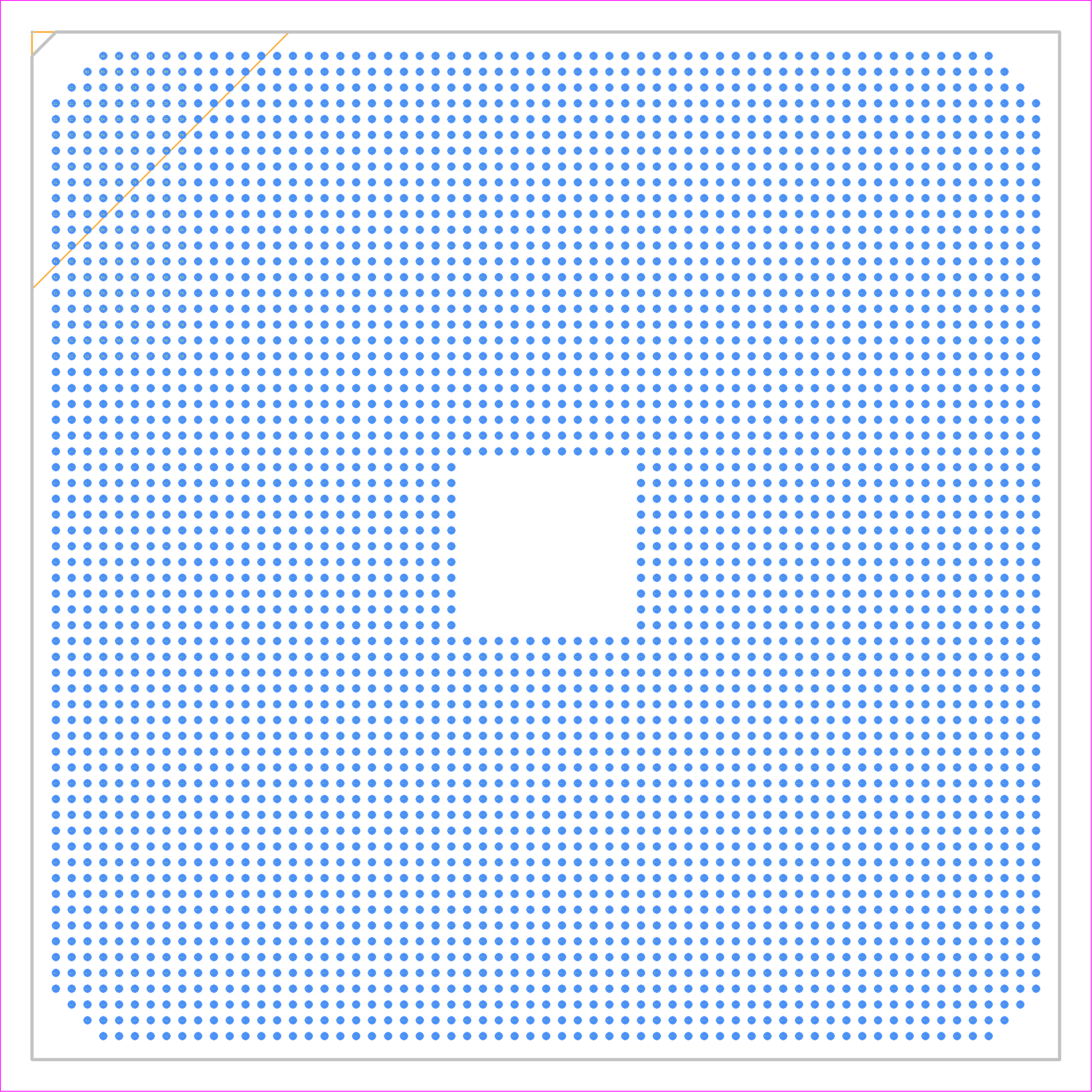

XCVU19P-2FSVA3824E - AMD PCB footprint - BGA - BGA - FSVA3824
click to zoom
3D Models
XCVU19P-2FSVA3824E - AMD  - 3D model - BGA - FSVA3824
click to zoom

XCVU19P-2FSVA3824E Details

  • Manufacturer Part Number:

    XCVU19P-2FSVA3824E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-3824

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B3824

  • Length:

    65 mm

  • Number of CLBs:

    510720

  • Number of Inputs:

    2072

  • Number of Logic Cells:

    8937600

  • Number of Outputs:

    2072

  • Number of Terminals:

    3824

  • Operating Temperature-Max:

    100 °C

  • Organization:

    510720 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA3824,63X63,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    4.64 mm

  • Supply Voltage-Max:

    0.876 V

  • Supply Voltage-Min:

    0.825 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Technology:

    16 nm

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    65 mm

XCVU19P-2FSVA3824E Frequently Asked Questions (FAQs)

  • The maximum power consumption of the XCVU19P-2FSVA3824E is approximately 25W, but this can vary depending on the specific application and usage.
  • To optimize power consumption, use the Vivado Power Analysis tool to identify areas of high power consumption, and apply power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling.
  • The maximum clock frequency supported by the XCVU19P-2FSVA3824E is 1.2 GHz, but this can vary depending on the specific application and usage.
  • To ensure signal integrity, use the Vivado Design Suite to analyze and optimize signal routing, and follow best practices for PCB design, such as using differential pairs, minimizing trace length, and using signal shielding.
  • The XCVU19P-2FSVA3824E is rated for operation in the industrial temperature range of -40°C to 100°C, but it's recommended to operate within the commercial temperature range of 0°C to 85°C for optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCVU19P-2FSVA3824E Overview

Use the download button to access the XCVU19P-2FSVA3824E schematic symbol, PCB footprint, and 3D model.
