AMD provides a PCB design guide and layout recommendations in the UG583 document, which includes guidelines for signal integrity, power distribution, and thermal management.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool to estimate power consumption based on design parameters. Additionally, implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
The XCZU2CG-1SBVA484I has a maximum junction temperature of 100°C. Ensure proper thermal management by using a heat sink, thermal interface material, and a well-designed PCB with thermal vias. AMD provides thermal management guidelines in the UG583 document.
Use the AMD Secure Boot mechanism, which includes features like encryption, authentication, and secure key storage. Implement a secure boot process using the Xilinx Secure Boot and Authentication (SBA) tool.
The XCZU2CG-1SBVA484I's high-speed transceivers have limitations on data rate, cable length, and signal integrity. Ensure proper signal termination, use the correct transceiver settings, and follow AMD's guidelines for transceiver usage in the UG578 document.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCZU2CG-1SBVA484I Overview

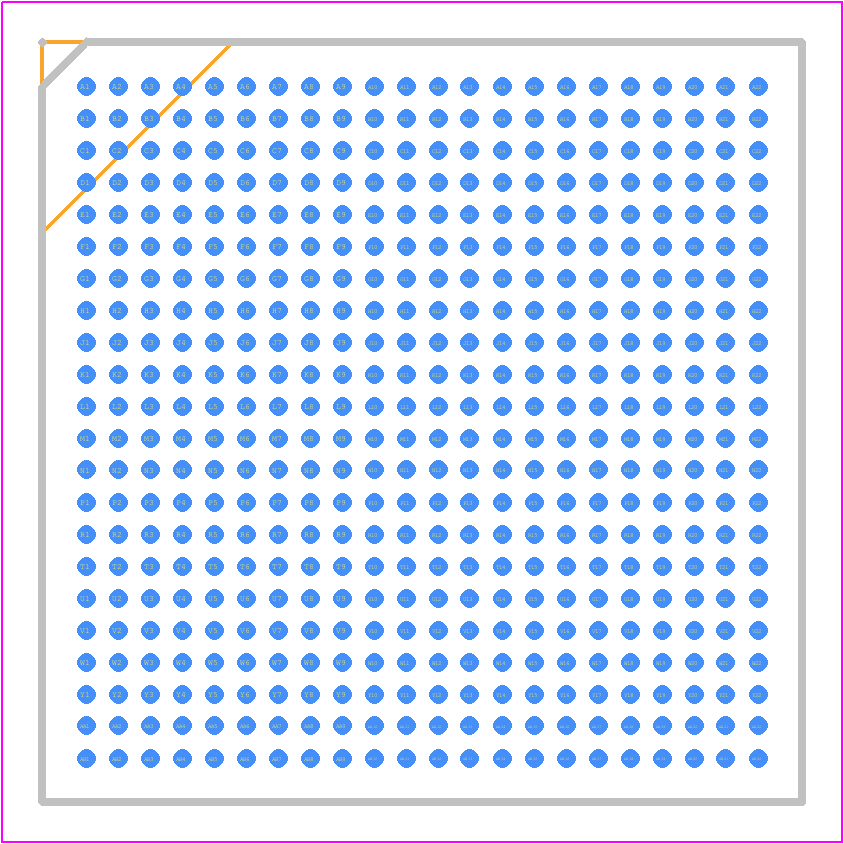

Use the download button to access the XCZU2CG-1SBVA484I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
