XCZU2CG-2SFVA625I - AMD

Description: FPGA - Field Programmable Gate Array XCZU2CG-2SFVA625I

Download XCZU2CG-2SFVA625I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

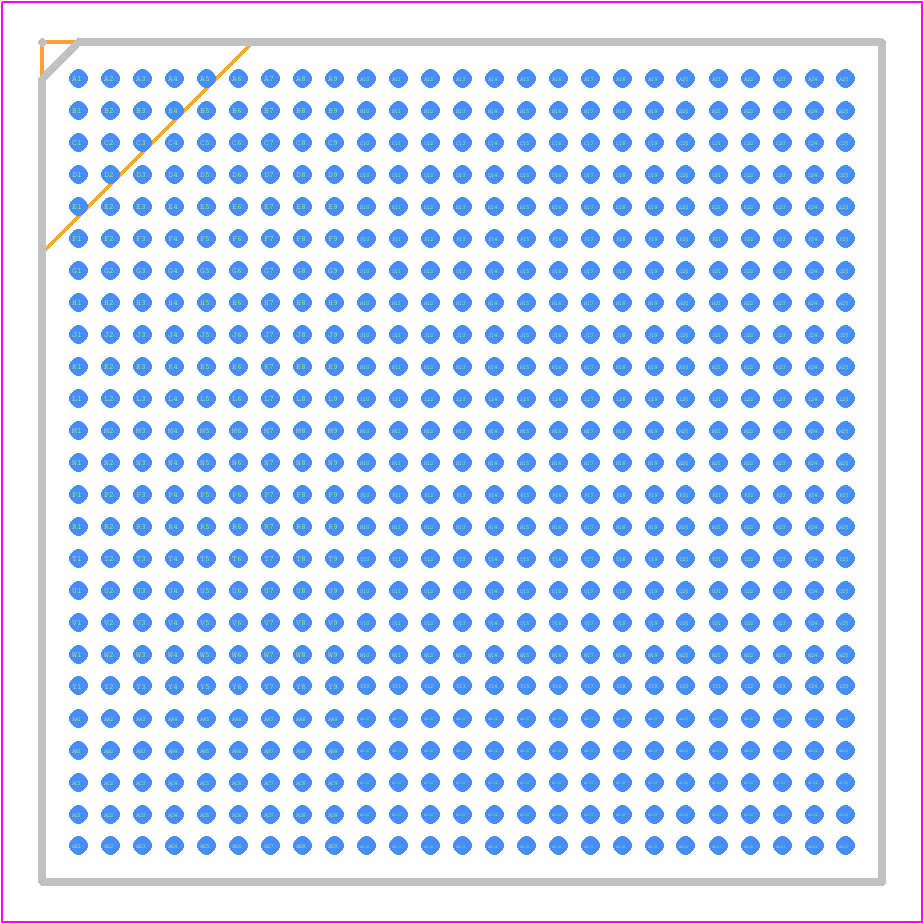

XCZU2CG-2SFVA625I - AMD PCB footprint - BGA - BGA - SFVA625
click to zoom
3D Models
XCZU2CG-2SFVA625I - AMD  - 3D model - BGA - SFVA625
click to zoom

XCZU2CG-2SFVA625I Details

  • Manufacturer Part Number:

    XCZU2CG-2SFVA625I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-625

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    19

  • JESD-30 Code:

    R-PBGA-B625

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    625

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    250

  • Supply Voltage-Max:

    0.876 V

  • Supply Voltage-Min:

    0.825 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • uPs/uCs/Peripheral ICs Type:

    SoC

XCZU2CG-2SFVA625I Frequently Asked Questions (FAQs)

  • AMD provides a PCB design guide and layout recommendations in the UG583 document, which includes guidelines for signal integrity, power distribution, and thermal management.
  • To optimize power consumption, use the Xilinx Power Estimator (XPE) tool to estimate power consumption based on your design. Additionally, implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
  • The XCZU2CG-2SFVA625I has a maximum junction temperature of 100°C. Ensure proper thermal management by using a heat sink, thermal interface material, and a well-designed PCB with thermal vias. AMD provides thermal modeling and simulation tools to help with thermal design.
  • AMD provides a range of security features, including bitstream encryption, secure boot, and anti-tamper mechanisms. Implement these features in your design, and consider using AMD's Secure Boot and Anti-Tamper (SBAT) solution.
  • AMD provides the Vivado Design Suite, which includes tools for design entry, synthesis, implementation, and verification. Additionally, the Vitis unified software platform provides a development environment for software and hardware developers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCZU2CG-2SFVA625I Overview

Use the download button to access the XCZU2CG-2SFVA625I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU2, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
