AMD provides a PCB design guide and layout recommendations in the UG583 document, which includes guidelines for signal integrity, power distribution, and thermal management.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool to estimate power consumption, and then apply power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
Implement security measures such as bitstream encryption, secure boot, and authentication using the AMD Secure Boot and Authentication (SBA) feature. Additionally, use secure key storage and follow secure development practices.
Follow AMD's thermal management guidelines, including using thermal interfaces, heat sinks, and fans. Also, implement thermal monitoring and throttling mechanisms to prevent overheating.
The XCZU2EG-1SFVC784E is not inherently radiation-hardened. For radiation-hardened applications, consider using AMD's radiation-tolerant FPGAs, such as the XQR or QPro families, and follow AMD's guidelines for radiation effects mitigation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCZU2EG-1SFVC784E Overview

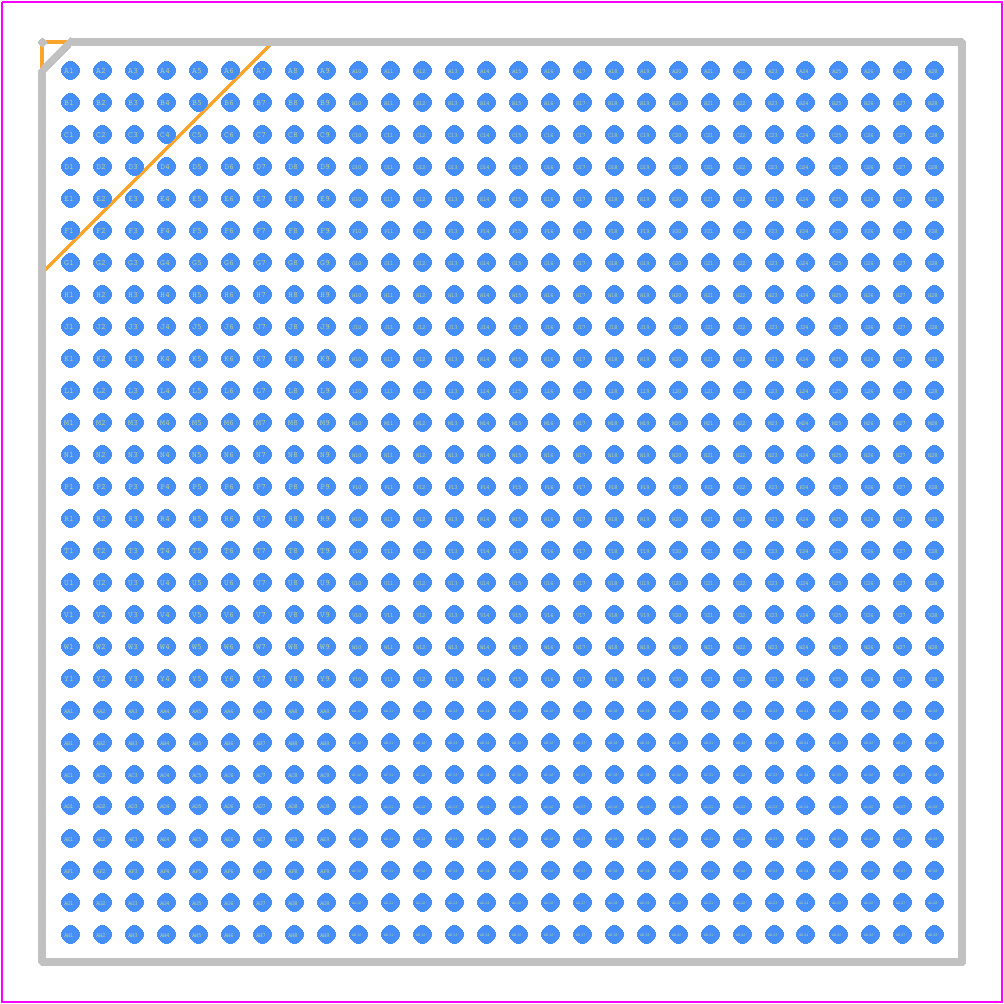

Use the download button to access the XCZU2EG-1SFVC784E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
