- Part Number XCZU3CG-2SFVC784E
- Manufacturer AMD
- Pin Count 784
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - SFVC784
- Released Date Nov 22, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XCZU3CG-2SFVC784E Details
-
Manufacturer Part Number:
XCZU3CG-2SFVC784E
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
FCBGA-784
-
HTS Code:
8542.31.00.30
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
AMD
-
YTEOL:
19
-
JESD-30 Code:
S-PBGA-B784
-
JESD-609 Code:
e1
-
Length:
23 mm
XCZU3CG-2SFVC784E Frequently Asked Questions (FAQs)
-
The maximum power consumption of the XCZU3CG-2SFVC784E is approximately 12W, depending on the operating frequency, voltage, and usage.
-
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequencies, and use low-power modes when possible.
-
The maximum operating frequency of the XCZU3CG-2SFVC784E is 500 MHz, but it can vary depending on the specific application and design.
-
To ensure signal integrity, use the Xilinx Vivado Design Suite to analyze and optimize signal routing, and follow best practices for PCB design, such as using differential pairs and minimizing signal lengths.
-
The recommended operating temperature range for the XCZU3CG-2SFVC784E is -40°C to 100°C, with a maximum junction temperature of 125°C.
Trust Checks
Community Provided
System Verified
Community Approved
XCZU3CG-2SFVC784E Overview

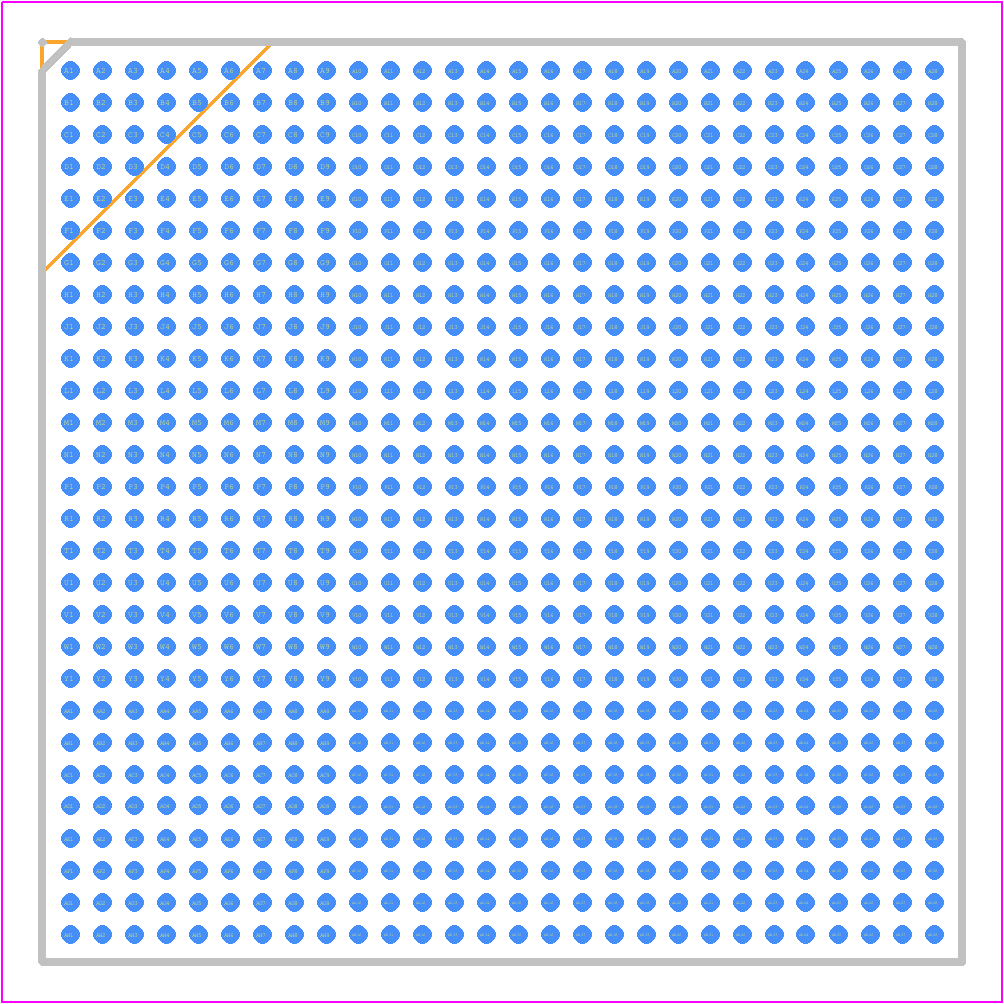

Use the download button to access the XCZU3CG-2SFVC784E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU3,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
