XCZU3EG-1SFVA625E - AMD

Description: XILINX - XCZU3EG-1SFVA625E - MPSOC, ARM CORTEX-A53, 1.5GHZ, FCBGA-625

Download XCZU3EG-1SFVA625E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XCZU3EG-1SFVA625E - AMD - PCB symbol
click to zoom
PCB Footprints

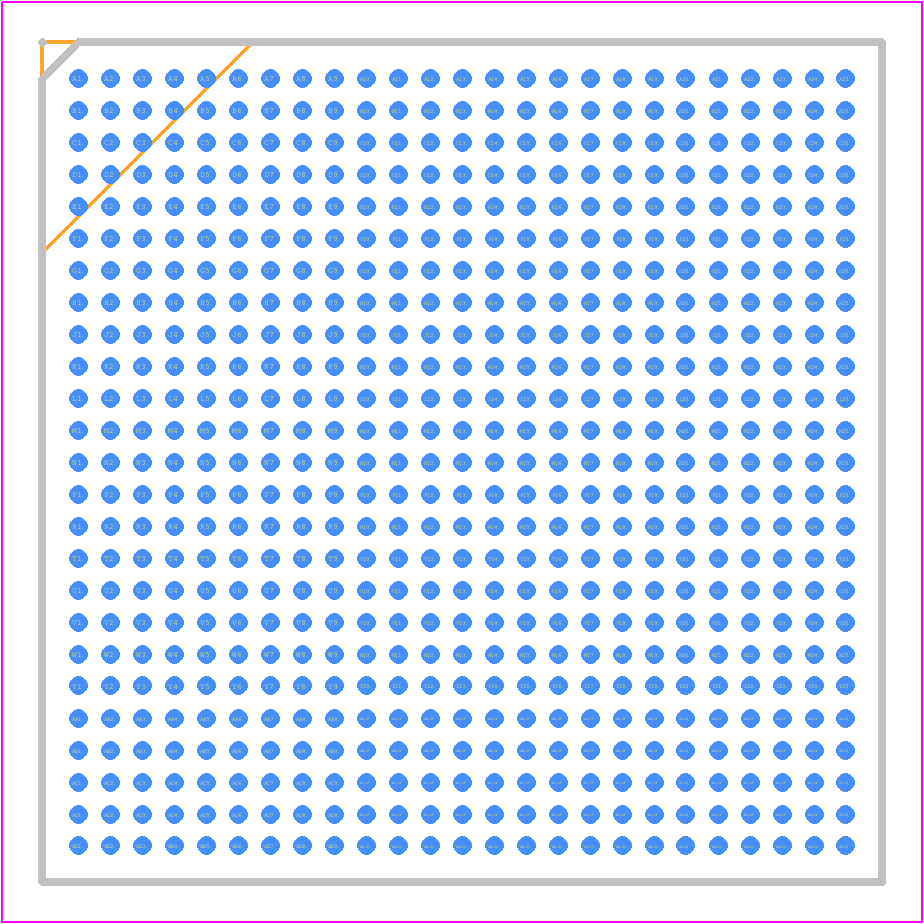

XCZU3EG-1SFVA625E - AMD PCB footprint - BGA - BGA - SFVA625
click to zoom
3D Models
XCZU3EG-1SFVA625E - AMD - 3D model - BGA - SFVA625
click to zoom

XCZU3EG-1SFVA625E Details

  • Manufacturer Part Number:

    XCZU3EG-1SFVA625E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-625

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    19

  • JESD-30 Code:

    R-PBGA-B625

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    625

  • Operating Temperature-Max:

    100 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Supply Voltage-Max:

    0.876 V

  • Supply Voltage-Min:

    0.825 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • uPs/uCs/Peripheral ICs Type:

    SoC

XCZU3EG-1SFVA625E Frequently Asked Questions (FAQs)

  • The maximum power consumption of the XCZU3EG-1SFVA625E is approximately 12W, but it can vary depending on the specific design and usage.
  • To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, and optimize clock frequencies, voltage, and design architecture.
  • The maximum operating temperature range for the XCZU3EG-1SFVA625E is -40°C to 100°C, with a junction temperature of up to 125°C.
  • To ensure signal integrity, use the Xilinx Vivado Design Suite to analyze and optimize signal routing, and follow the guidelines for signal termination, impedance matching, and clock domain crossing.
  • The maximum bandwidth of the XCZU3EG-1SFVA625E's PCIe interface is 16 GT/s, which translates to approximately 985 MB/s per lane, with a maximum of 16 lanes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCZU3EG-1SFVA625E Overview

Use the download button to access the XCZU3EG-1SFVA625E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU3, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
