The maximum power consumption of the XCZU3EG-1SFVC784E is approximately 12W, but it can vary depending on the specific design, clock frequency, and operating conditions.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequencies, and use low-power modes. Additionally, consider using the AMD-provided power optimization IP cores and following the Xilinx Power Management Guide.
The XCZU3EG-1SFVC784E has an industrial temperature range of -40°C to 100°C, making it suitable for a wide range of applications, including those in harsh environments.
Yes, the XCZU3EG-1SFVC784E is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its robust design, error correction mechanisms, and compliance with various industry standards (e.g., DO-254, IEC 61508).
To ensure signal integrity, follow the Xilinx Signal Integrity Guidelines, use the Vivado Design Suite's signal integrity analysis tools, and consider using the built-in signal conditioning and termination features of the FPGA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCZU3EG-1SFVC784E Overview

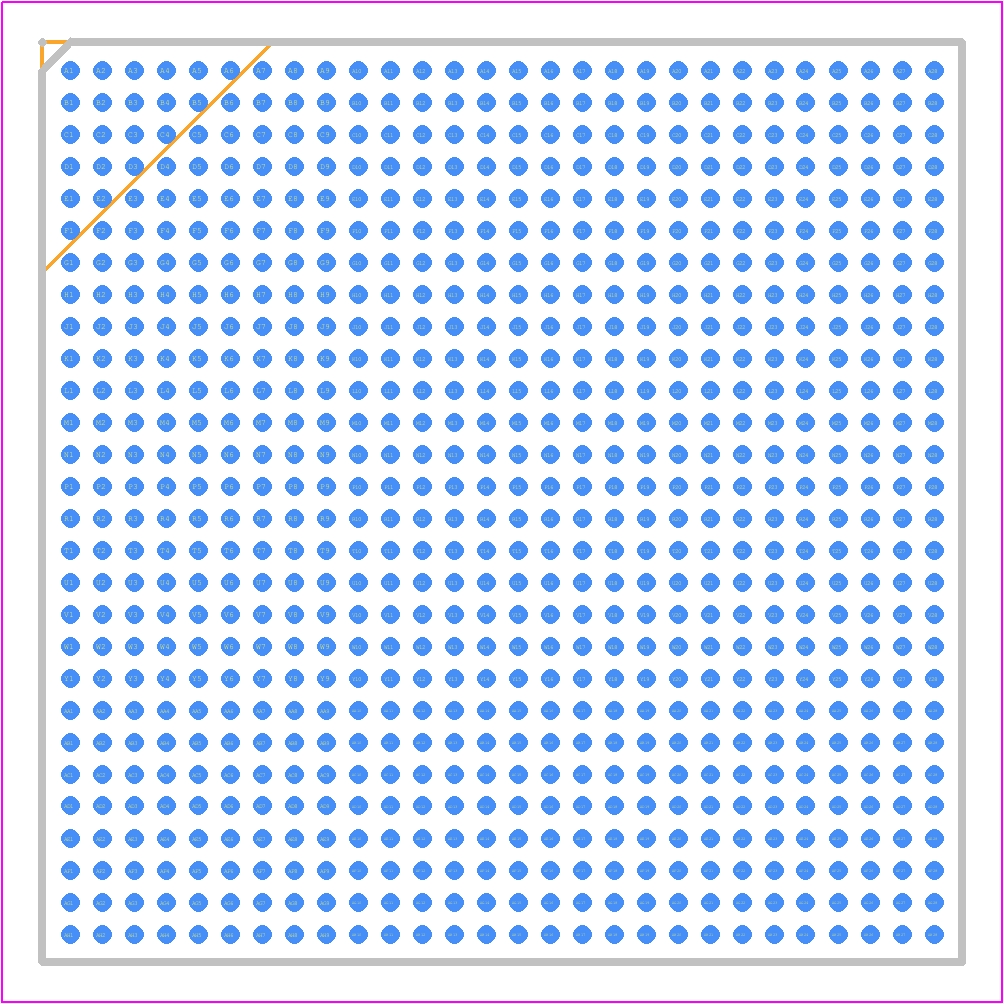

Use the download button to access the XCZU3EG-1SFVC784E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU3,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
