XCZU3EG-1SFVC784I - AMD

Description: FPGA Zynq UltraScale+ Family 154350 Cells 20nm Technology 0.95V 784-Pin FC-BGA Tray - Trays

Download XCZU3EG-1SFVC784I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XCZU3EG-1SFVC784I - AMD - PCB symbol
click to zoom
PCB Footprints

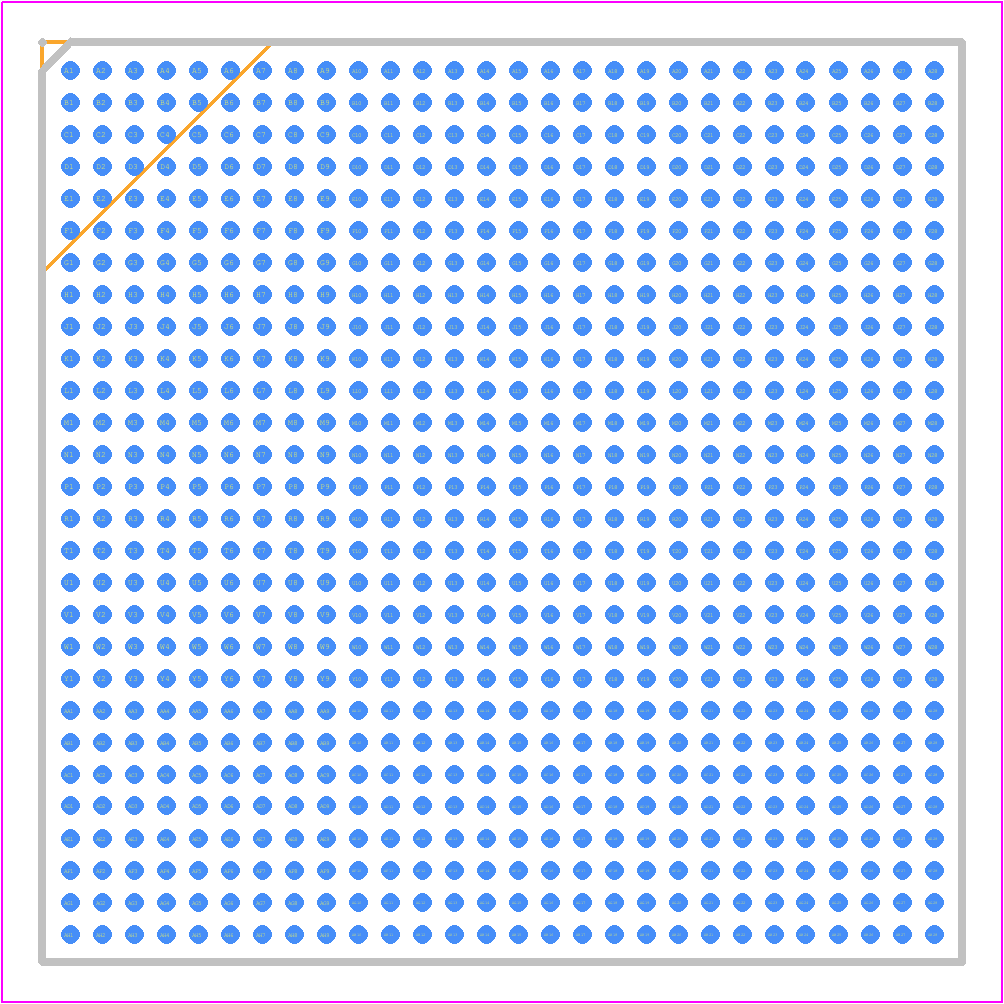

XCZU3EG-1SFVC784I - AMD PCB footprint - BGA - BGA - SFVC784
click to zoom
3D Models
XCZU3EG-1SFVC784I - AMD - 3D model - BGA - SFVC784
click to zoom

XCZU3EG-1SFVC784I Details

  • Manufacturer Part Number:

    XCZU3EG-1SFVC784I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-784

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    19

  • JESD-30 Code:

    R-PBGA-B784

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    784

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    250

  • Supply Voltage-Max:

    0.876 V

  • Supply Voltage-Min:

    0.825 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    SoC

XCZU3EG-1SFVC784I Frequently Asked Questions (FAQs)

  • The maximum power consumption of the XCZU3EG-1SFVC784I is approximately 15W, but this can vary depending on the specific application and usage.
  • To optimize power consumption, use the Vivado Power Analysis tool to identify areas of high power consumption, and then apply power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling.
  • The maximum clock frequency supported by the XCZU3EG-1SFVC784I is 500 MHz, but this can vary depending on the specific application and usage.
  • To implement a DDR4 memory interface, use the MIG (Memory Interface Generator) tool in Vivado to generate a DDR4 controller IP core, and then integrate it into your design.
  • The maximum bandwidth of the PCIe interface on the XCZU3EG-1SFVC784I is x8 Gen3, which is approximately 7880 MB/s.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCZU3EG-1SFVC784I Overview

Use the download button to access the XCZU3EG-1SFVC784I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU3, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
