Description:Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™, ARM Mali™-400 MP2 System On Chip (SOC) IC Zynq® UltraScale+™ MPSoC EV Zynq®UltraScale+™ FPGA, 192K+ Logic Cells 500MHz, 600MHz, 1.2GHz 784-FCBGA (23x23)
AMD provides a PCB design guide and layout recommendations in the UG583 document, which includes guidelines for signal integrity, power distribution, and thermal management.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool to estimate power consumption, and then apply power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
Implement a secure boot process, use encryption and authentication mechanisms, and follow AMD's SecureIP guidelines to protect IP and prevent unauthorized access.
Follow AMD's thermal management guidelines, use thermal simulation tools, and implement thermal monitoring and mitigation techniques such as thermal throttling and cooling solutions.
Consult AMD's radiation-hardened and high-reliability FPGA documentation, and consider factors such as total ionizing dose (TID), single-event effects (SEEs), and latchup protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCZU4EV-1SFVC784E Overview

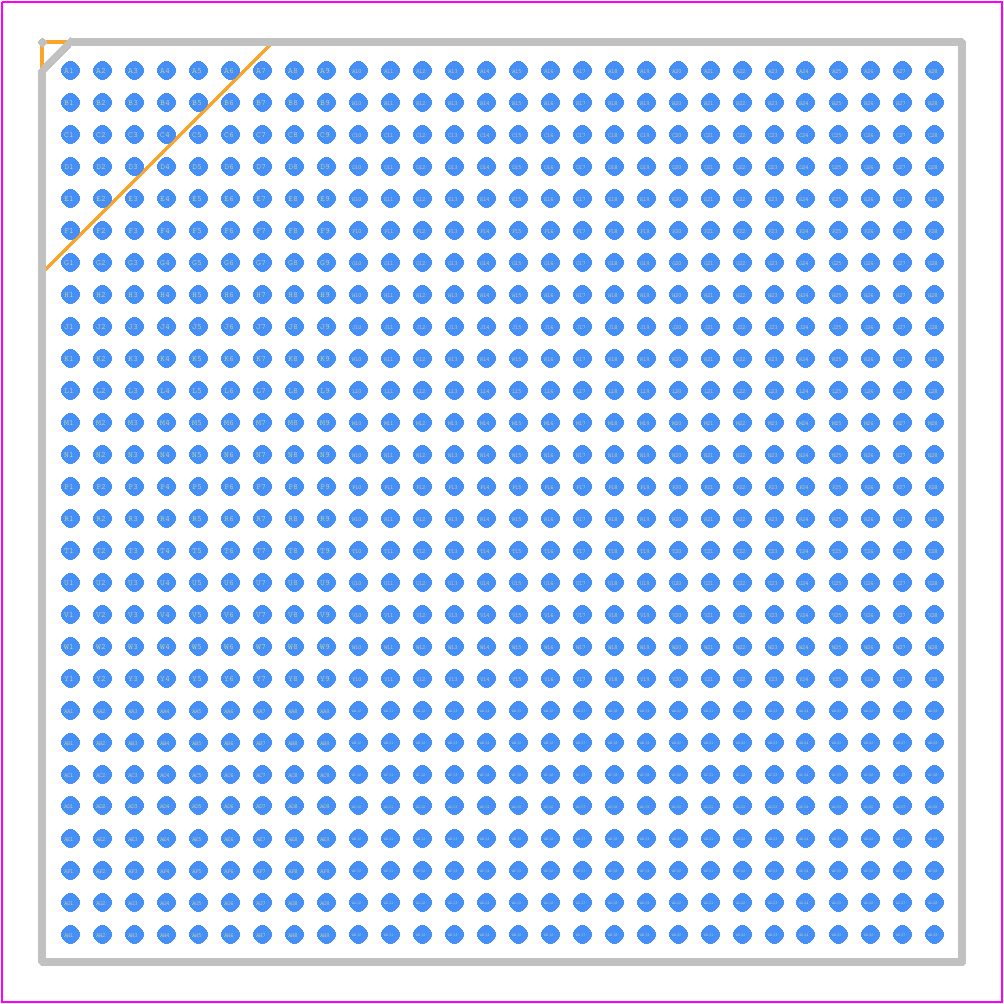

Use the download button to access the XCZU4EV-1SFVC784E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU4,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
