The recommended PCB layout and stackup for the XCZU5CG-L1SFVC784I can be found in the Xilinx PCB Design and Signal Integrity Guide (UG583). It provides guidelines for optimal signal integrity, including layer stackup, trace routing, and decoupling capacitor placement.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool to estimate power consumption based on your design. Then, implement power-saving techniques such as clock gating, dynamic voltage and frequency scaling, and using low-power modes. Additionally, consider using the AMD SmartPLL technology to reduce power consumption.
The XCZU5CG-L1SFVC784I has a maximum junction temperature of 100°C. To ensure proper thermal management, use a heat sink with a thermal interface material, and design the PCB to allow for adequate airflow. The Xilinx Thermal Management Guide (UG544) provides more detailed guidelines.
To ensure reliable configuration and boot, use a secure boot mechanism such as AMD's Secure Boot and Authentication (SBA) feature. Additionally, implement a robust configuration storage solution, such as a non-volatile memory (NVM) or a battery-backed configuration memory.
For high-speed interfaces like PCIe and Ethernet, follow the guidelines in the Xilinx High-Speed Interface Design Guide (UG576). This includes using differential signaling, controlling impedance, and implementing signal integrity techniques such as channel bonding and lane reversal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCZU5CG-L1SFVC784I Overview

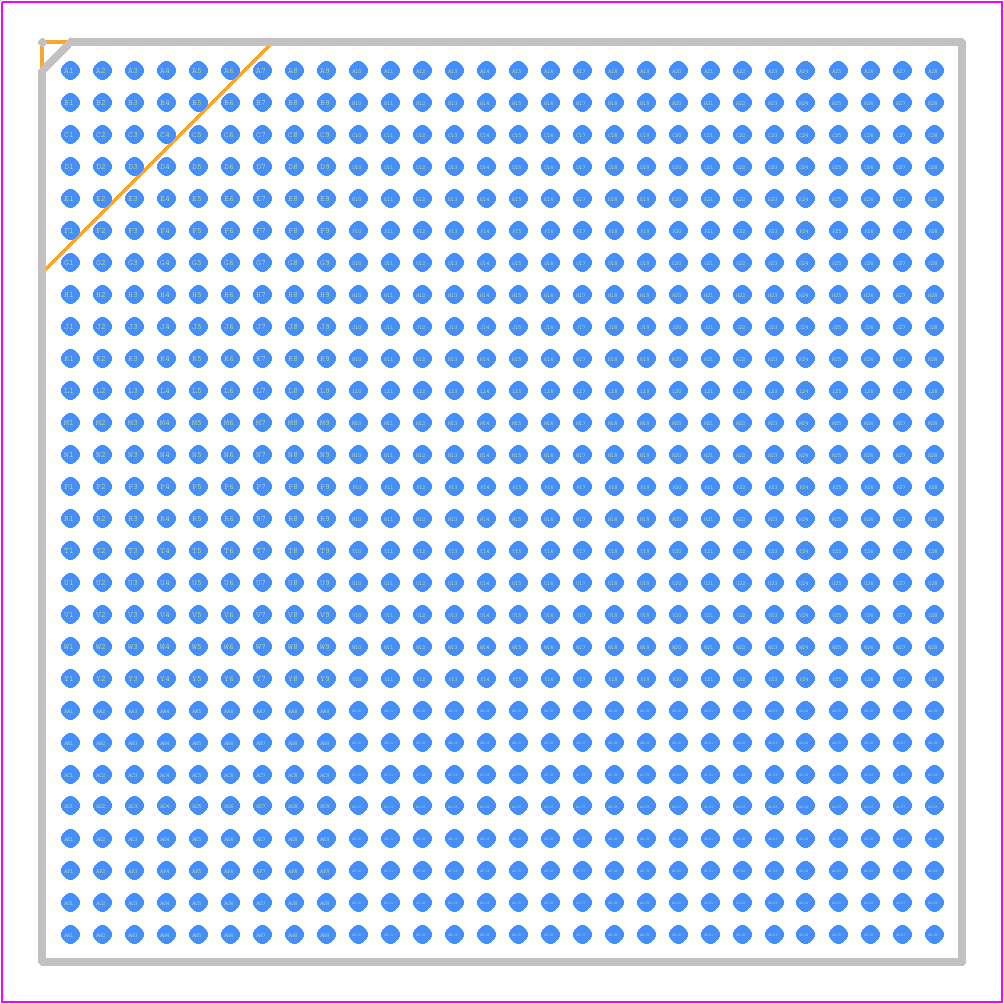

Use the download button to access the XCZU5CG-L1SFVC784I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU5,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
