XCZU5EV-3SFVC784E footprint, schematic symbol and 3D model by AMD

XCZU5EV-3SFVC784E - AMD

Description: Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ System On Chip (SOC) IC Zynq® UltraScale+™ MPSoC EV Zynq®UltraScale+™ FPGA, 256K+ Logic Cells 600MHz, 1.5GHz 784-FCBGA (23x23)

Download XCZU5EV-3SFVC784E Model

Schematic
symbols

PCB
footprints

3D
models

Symbol

click to zoom

PCB Footprints

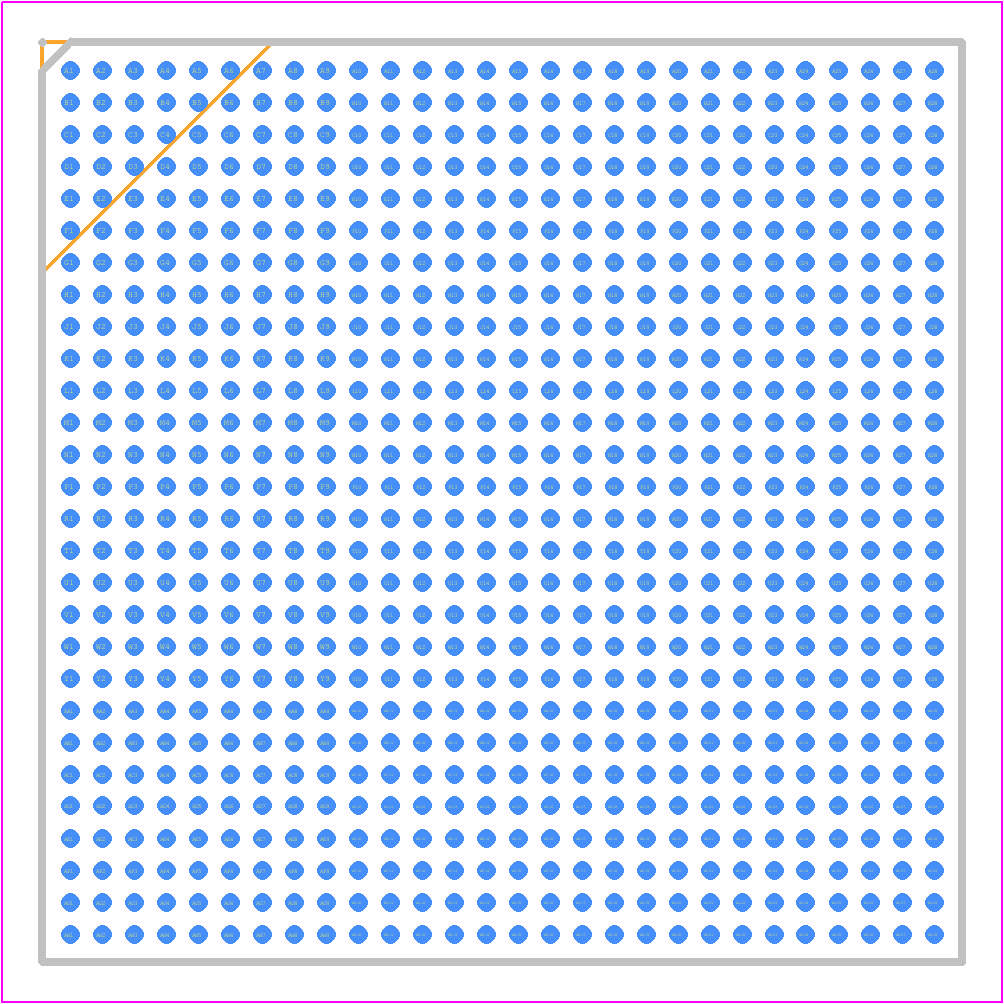

XCZU5EV-3SFVC784E - AMD PCB footprint - BGA - BGA - SFVB784I

click to zoom

3D Models

XCZU5EV-3SFVC784E - AMD - 3D model - BGA - SFVB784I

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XCZU5EV-3SFVC784E
Part Number XCZU5EV-3SFVC784E
Manufacturer AMD
Pin Count 784
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - SFVB784I
Released Date Jul 11, 2023
Pinout / Pin List Click Here (Member Only)

Trust Checks

System Verified

XCZU5EV-3SFVC784E Overview

Use the download button to access the XCZU5EV-3SFVC784E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like XCZU5, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
