Description:MPSOC, ARM CORTEX-A53/R5, FCBGA-900; Product Range:Zynq Family UltraScale+ Series Microprocessors; CPU Speed:1.5GHz; Core Architecture:ARM Cortex-A53, ARM Cortex-R5; MPU Case Style:FCBGA; No. of Pins:900Pins; MPU Family:Zynq; MPU RoHS Compliant: Yes
Xilinx provides a PCB design guide and layout recommendations in the UG583 document, which includes guidelines for signal integrity, power distribution, and thermal management.
Xilinx provides power estimation and optimization tools, such as the Xilinx Power Estimator (XPE) and the Vivado Power Analysis tool. These tools help estimate power consumption and provide suggestions for optimization.
Xilinx recommends following the thermal management guidelines in the UG583 document, which includes information on heat sink design, thermal interface materials, and airflow considerations.
Xilinx provides a secure boot mechanism, which includes features like authentication, encryption, and secure key storage. The UG580 document provides detailed information on secure boot implementation.
The ARM Cortex-A9 processors in the XCZU7EV have limitations on cache coherence, memory bandwidth, and interrupt handling. Xilinx provides documentation and application notes on using the processors effectively, including the UG585 document.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCZU7EV-2FBVB900E Overview

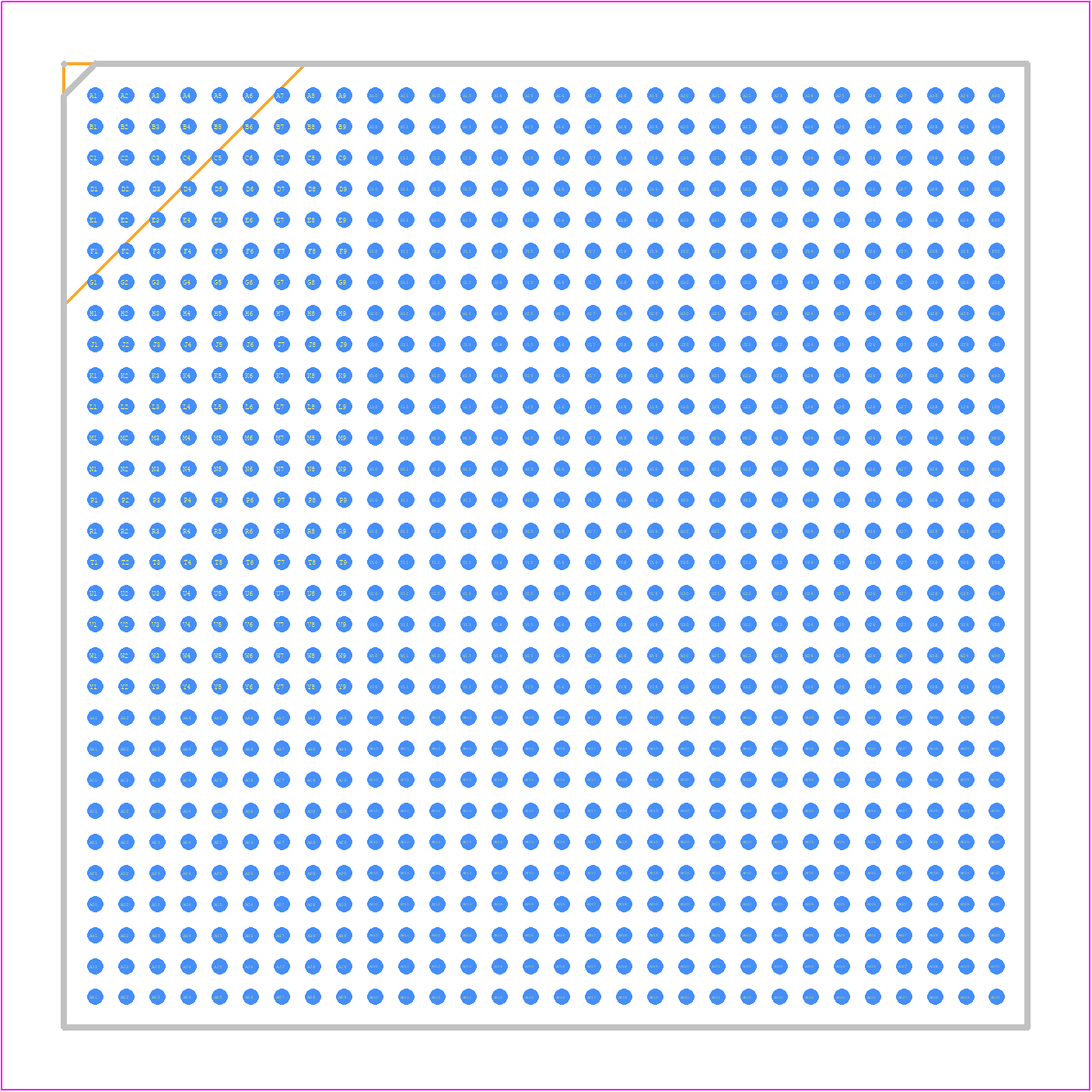

Use the download button to access the XCZU7EV-2FBVB900E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU7,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
