AMD provides a PCB design guide and layout recommendations in their documentation, including the '7 Series FPGAs PCB Design Guide' and 'Zynq UltraScale+ MPSoC PCB Design Guide'. Additionally, AMD recommends a 4-6 layer PCB stackup with a minimum of two power planes and two ground planes.
To optimize power consumption, use the AMD Power Estimator (APE) tool to estimate power consumption based on your design. Implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling. For thermal management, ensure proper airflow, use thermal interfaces (e.g., heat sinks), and consider using AMD's thermal management IP cores.
Implement a secure boot process using AMD's Secure Boot and Authentication (SBA) feature. Use encryption and decryption IP cores, such as AES and RSA, to protect data. Physically Unclonable Functions (PUFs) can be used to create a unique device identity. Additionally, follow AMD's guidelines for secure coding practices and use secure communication protocols.
AMD's XCZU9EG-1FFVB1156I is rated for industrial temperature range (-40°C to 100°C). Ensure proper PCB design, component selection, and thermal management to withstand environmental stresses. Use AMD's built-in features, such as error correction and detection, to mitigate the effects of radiation-induced errors.
AMD recommends using their Vivado Design Suite for design entry, synthesis, implementation, and verification. Use the Vivado IP Integrator to create and manage IP blocks. For simulation and verification, use the Vivado Simulator or third-party tools like ModelSim or QuestaSim.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCZU9EG-1FFVB1156I Overview

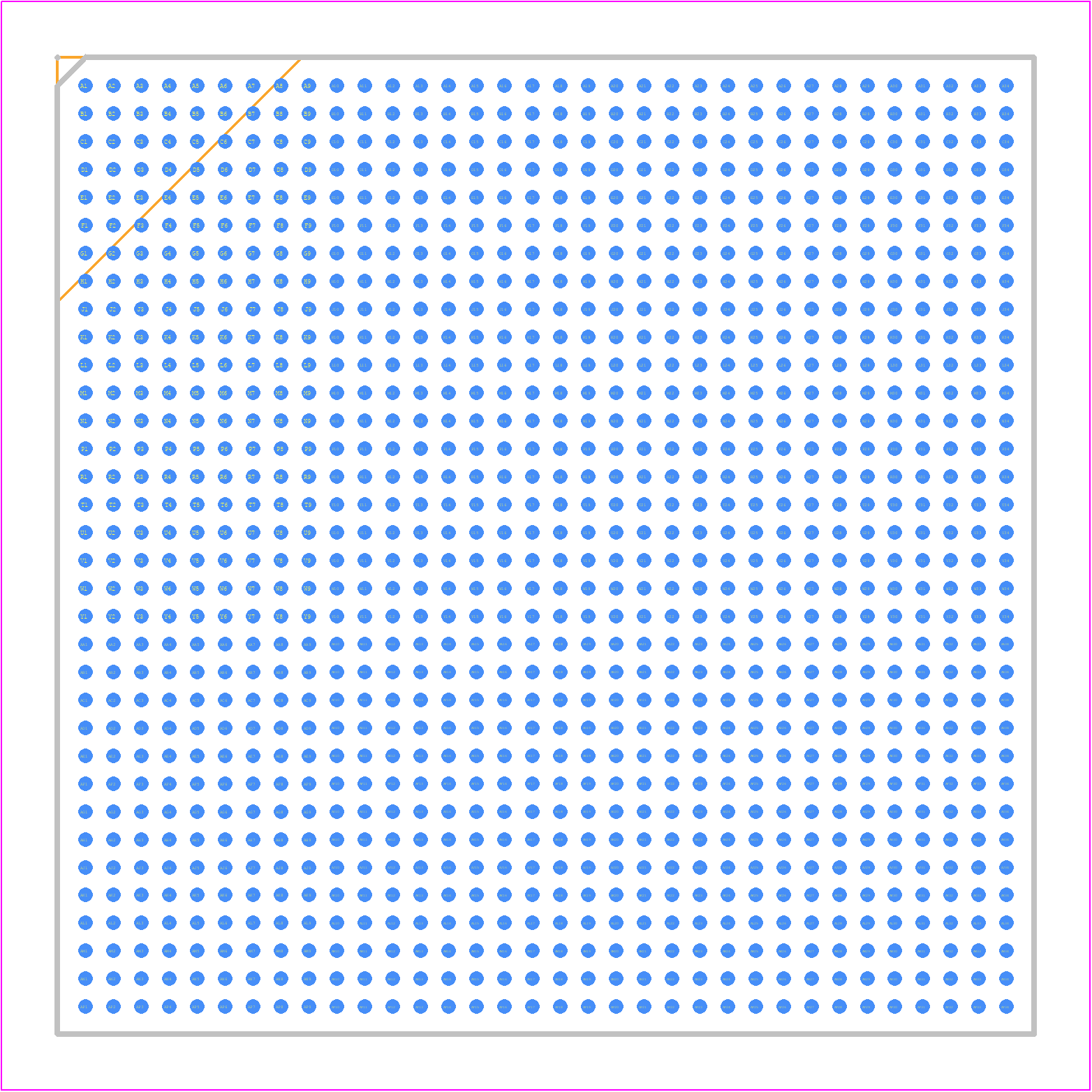

Use the download button to access the XCZU9EG-1FFVB1156I schematic symbol, PCB footprint, and 3D model.
