XDMDK14C3 - SunLED

Description: LED Display, Three Digit, Color: Red Lens: Wavelength: 645nm Min.Intensity: 31000 Viewing Angle: Package Size: 0.56"(14.22mm)

Download XDMDK14C3 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XDMDK14C3 model

Email notifications will be applied after download.

Send part feedback

Symbol

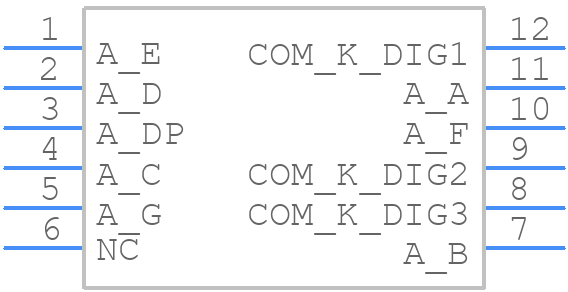

XDMDK14C3 - SunLED - PCB symbol

PCB Footprints

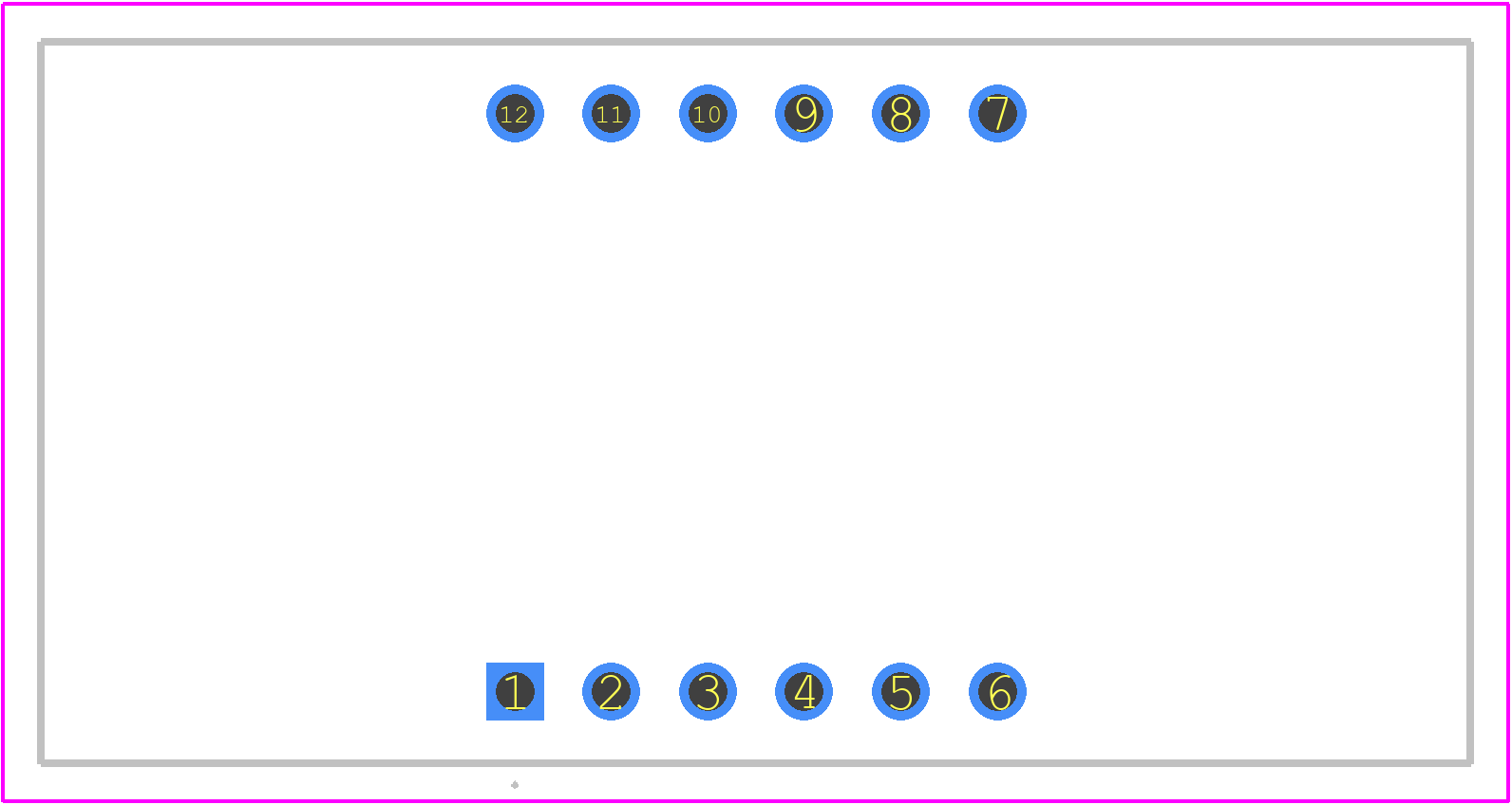

XDMDK14C3 - SunLED PCB footprint - Other - Other - XDMDK14C3-2

3D Models

XDMDK14C3 - SunLED - 3D model - Other - XDMDK14C3-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for XDMDK14C3
Part Number XDMDK14C3
Manufacturer SunLED
Pin Count 12
Part Category Display
Package Category Other
Footprint Name Other - XDMDK14C3-2
Released Date Feb 14, 2024
Last Modified Date Feb 14, 2024 7:52 AM UTC
Pinout / Pin List Click Here (Member Only)

XDMDK14C3 Details

Manufacturer Part Number:
XDMDK14C3
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
SunLED Group
YTEOL:
6.6
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
