Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XDMR14A4-A
- Part Number XDMR14A4-A
- Manufacturer SunLED
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - XDMR14A4-A
- Released Date Jan 30, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XDMR14A4-A Details
-
Manufacturer Part Number:
XDMR14A4-A
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT PACKAGE-12
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
SunLED Group
-
YTEOL:
6
-
Additional Feature:
IC COMPATIBLE
-
Color:
RED
XDMR14A4-A Frequently Asked Questions (FAQs)
-
The recommended storage temperature is -20°C to 30°C, and humidity is 60% RH or less, to prevent moisture absorption and ensure reliability.
-
Yes, XDMR14A4-A is suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors like moisture, UV, and extreme temperatures.
-
The maximum soldering temperature is 260°C, and the recommended soldering time is 3 seconds or less, to prevent damage to the LED or its internal components.
-
It's essential to follow proper ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, to prevent damage to the LED from static electricity.
-
The recommended operating temperature range is -20°C to 80°C, but it's essential to derate the LED's performance and lifespan at extreme temperatures.
Trust Checks
Expert Contribution
System Verified
Community Approved
XDMR14A4-A Overview

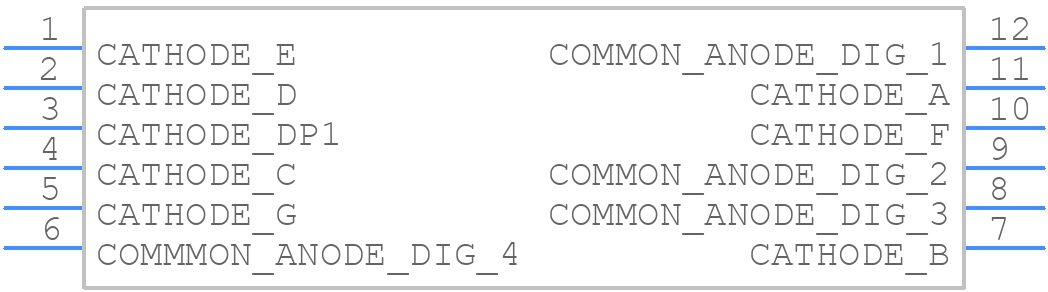

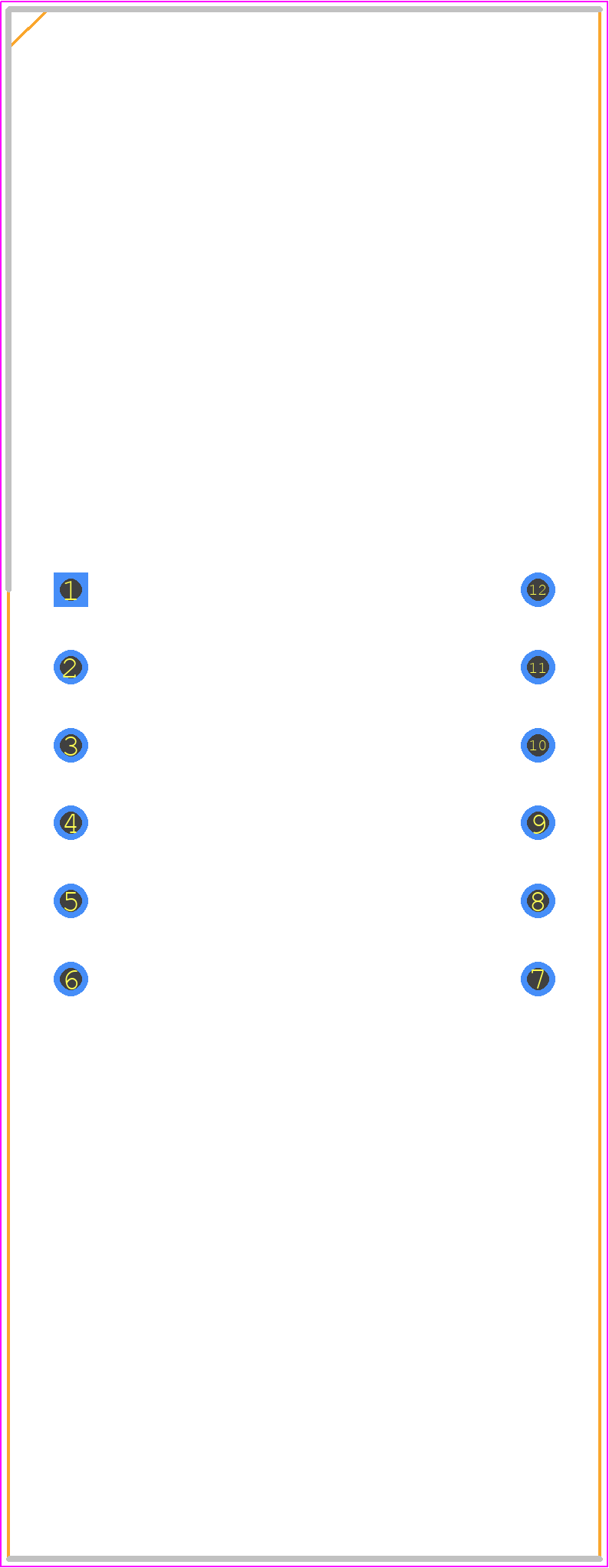

Use the download button to access the XDMR14A4-A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XDMR1,
or try a keyword search, such as LED Displays
