XDPL8105XUMA1 - Infineon

Description: INFINEON - XDPL8105XUMA1 - LED DRIVER, FLYBACK, 180.8KHZ, DSO-8

Download XDPL8105XUMA1 Model

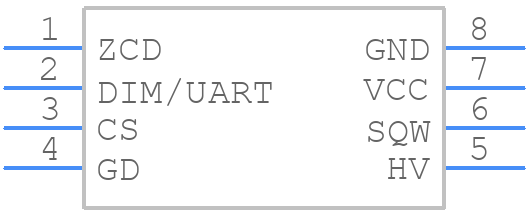

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XDPL8105XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - XDPL8105XUMA1
click to zoom
3D Models
XDPL8105XUMA1 - Infineon  - 3D model - Small Outline Packages - XDPL8105XUMA1
click to zoom

XDPL8105XUMA1 Details

  • Manufacturer Part Number:

    XDPL8105XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Min:

    5.7 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    180.8 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

XDPL8105XUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use thermal interface material (TIM) and a heat sink if possible.
  • Use a shielded enclosure, keep sensitive analog circuits away from the XDPL8105, and ensure proper grounding and decoupling. Follow Infineon's EMC guidelines and consider using EMI filters or common-mode chokes.
  • The XDPL8105 requires a 25MHz clock input. Ensure proper clock domain crossing by using clock domain crossing circuits or synchronizers, and follow Infineon's guidelines for clock signal integrity.
  • Use the device's power-down modes, optimize the clock frequency, and minimize the number of active circuits. Consider using a power management IC to regulate voltage and reduce standby current.
  • The XDPL8105 is qualified according to AEC-Q100 and ISO/TS 16949. Ensure proper storage and handling, follow Infineon's recommended operating conditions, and implement a robust testing and validation strategy.
