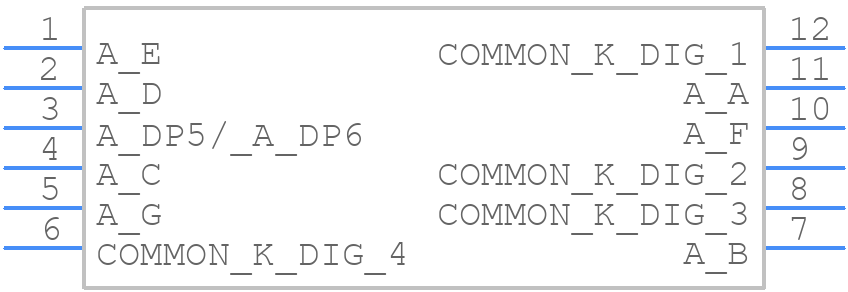

Symbol

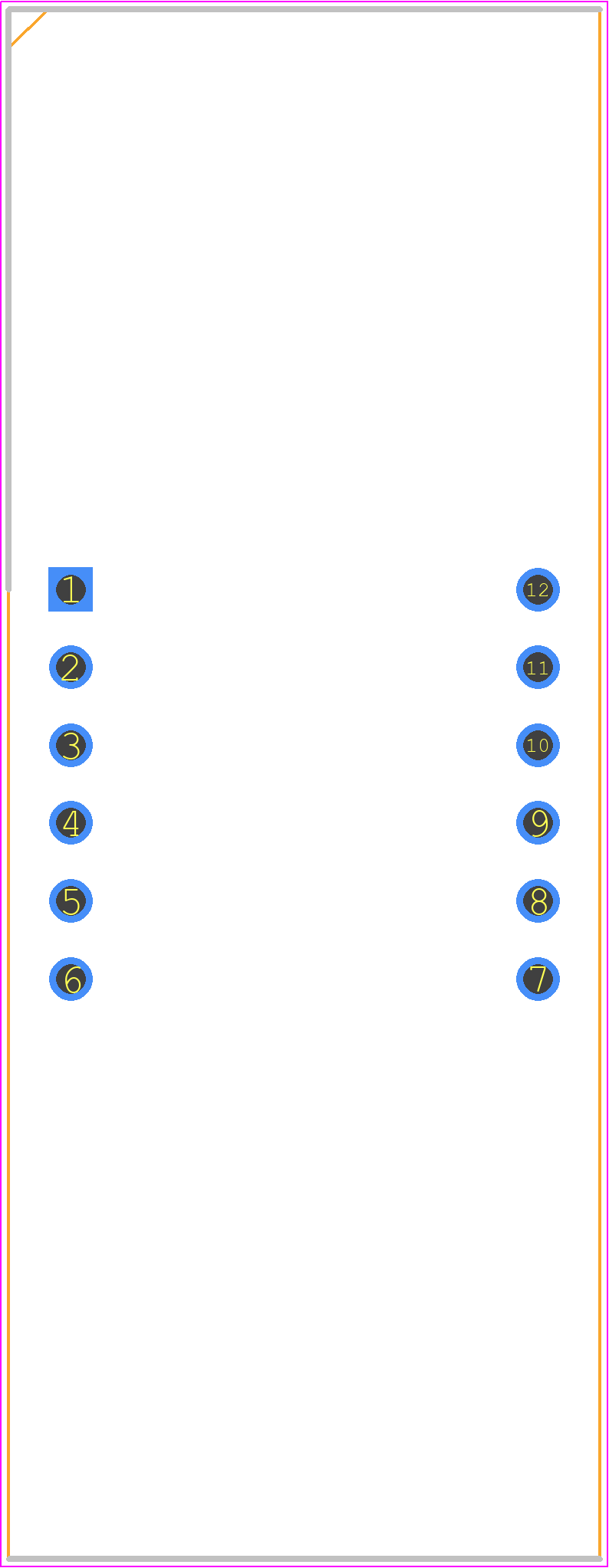

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XDUG14C4-1A
- Part Number XDUG14C4-1A
- Manufacturer SunLED
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - XDUG14C4-1A
- Released Date Apr 2, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XDUG14C4-1A Details
-
Manufacturer Part Number:
XDUG14C4-1A
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT PACKAGE-12
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
SunLED Group
-
YTEOL:
6
-
Additional Feature:
IC COMPATIBLE
-
Color:
GREEN
XDUG14C4-1A Frequently Asked Questions (FAQs)
-
The recommended storage temperature for XDUG14C4-1A is -20°C to 30°C, with a relative humidity of 60% or less.
-
Yes, XDUG14C4-1A is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the device from environmental factors such as moisture, dust, and UV radiation.
-
The maximum soldering temperature for XDUG14C4-1A is 260°C for a maximum of 3 seconds.
-
Yes, XDUG14C4-1A is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
-
The typical junction-to-case thermal resistance of XDUG14C4-1A is around 10°C/W, but this value can vary depending on the specific application and thermal management design.
Trust Checks
Expert Contribution
System Verified
Community Approved
XDUG14C4-1A Overview
Use the download button to access the XDUG14C4-1A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XDUG1,
or try a keyword search, such as LED Displays
