Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XDUR09A3
- Part Number XDUR09A3
- Manufacturer SunLED
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets

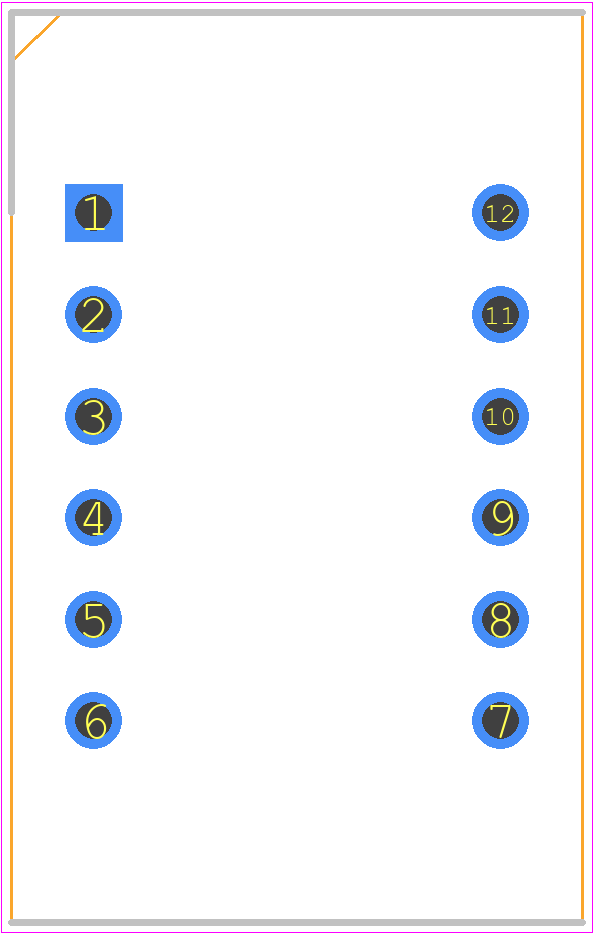

- Footprint Name Dual-In-Line Sockets - XDUR09A3
- Released Date May 11, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XDUR09A3 Details
-
Manufacturer Part Number:
XDUR09A3
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT PACKAGE-12
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
SunLED Group
-
YTEOL:
6
-
Additional Feature:
IC COMPATIBLE
-
Color:
RED
XDUR09A3 Frequently Asked Questions (FAQs)
-
The recommended storage temperature is -20°C to 30°C, and humidity is 60% RH or less, to prevent moisture absorption and ensure reliability.
-
Yes, XDUR09A3 is suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors like water, dust, and UV exposure.
-
The maximum soldering temperature is 260°C, and the recommended soldering time is 3 seconds or less, to prevent damage to the LED chip or internal components.
-
It's recommended to use an ESD wrist strap or mat, and handle the components in an ESD-protected environment to prevent electrostatic discharge damage.
-
The binning and sorting criteria are based on luminous flux, color temperature, and forward voltage. Please contact SunLED Group for specific binning information and availability.
Trust Checks
Community Provided
System Verified
Community Approved
XDUR09A3 Overview

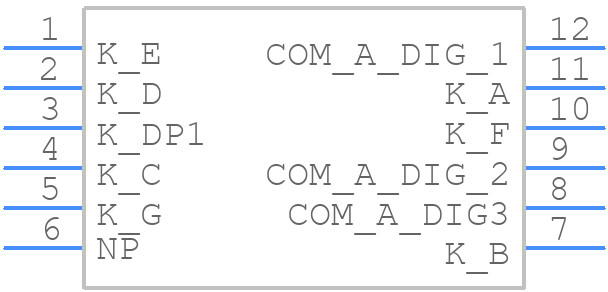

Use the download button to access the XDUR09A3 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XDUR0,
or try a keyword search, such as LED Displays
