Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
The XF2L-2235-1A has a high power dissipation rating. To manage thermal issues, ensure good airflow, use a heat sink if necessary, and follow Omron's guidelines for thermal management. Additionally, consider using thermal interface materials and designing a thermal pad on the PCB.
The XF2L-2235-1A is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, such as wrist straps and mats. Follow Omron's ESD handling guidelines and ensure that your production line and storage facilities are ESD-safe.
While the XF2L-2235-1A is designed to be robust, it's essential to evaluate its performance in high-vibration or high-shock environments. Omron provides guidelines for vibration and shock testing. Consult with Omron's application engineers or perform your own testing to ensure the device meets your specific requirements.
To troubleshoot issues with the XF2L-2235-1A, follow Omron's troubleshooting guidelines and application notes. Check for proper soldering, ensure correct voltage and current supply, and verify that the device is operated within its specified ratings. If issues persist, contact Omron's technical support or a local representative for assistance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
XF2L-2235-1A Overview

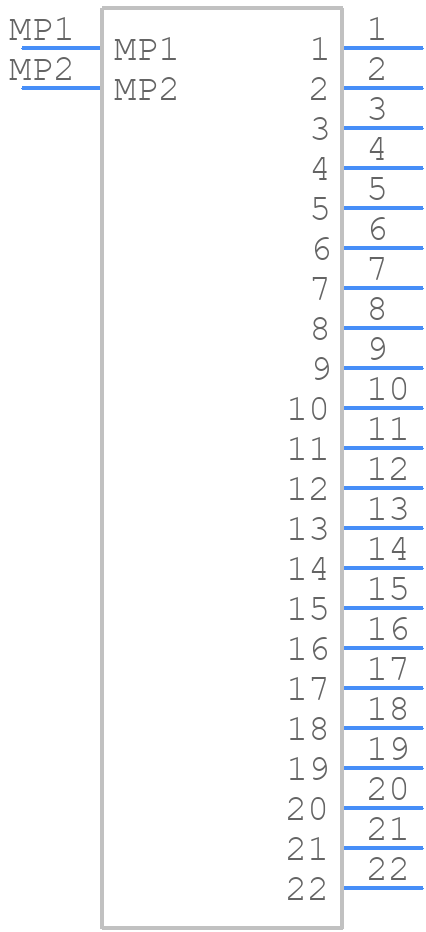

Use the download button to access the XF2L-2235-1A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XF2L-,
or try a keyword search, such as Headers and Edge Type Connectors
