XF3M-1815-1B - OMRON Electronics

Description: FFC & FPC Connectors SKT 18 POS 0.5mm Solder RA SMD

Download XF3M-1815-1B Model

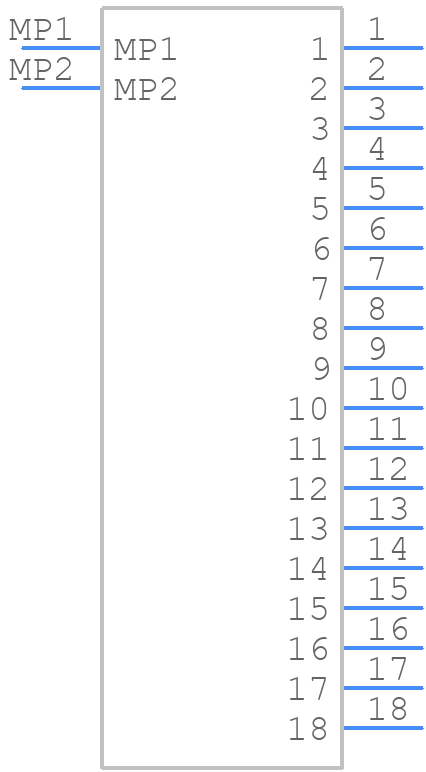

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XF3M-1815-1B - OMRON Electronics PCB footprint - Other - Other - XF3M-1815-1B-2
click to zoom
3D Models
XF3M-1815-1B - OMRON Electronics  - 3D model - Other - XF3M-1815-1B-2
click to zoom

XF3M-1815-1B Details

  • Manufacturer Part Number:

    XF3M-1815-1B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    7.77

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.224 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.508 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    18

XF3M-1815-1B Frequently Asked Questions (FAQs)

  • Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering, thermal management, and electrical performance.
  • Proper thermal management is crucial for the reliability and performance of XF3M-1815-1B. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal vias and copper pours.
  • While the datasheet provides the recommended operating conditions, it's essential to note that the maximum allowable voltage and current ratings are typically 10-20% higher than the recommended values. However, it's crucial to consult with Omron's application engineers or technical support to determine the exact limits for your specific application.
  • To ensure reliability and durability, follow Omron's guidelines for environmental considerations, such as operating temperature range, humidity, and vibration. Additionally, consider using conformal coatings, potting, or other protection methods to safeguard the device from environmental stresses.
  • Omron recommends following standard ESD handling and protection procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. It's also essential to ensure that the device is properly grounded during handling and assembly.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XF3M-1815-1B Overview

Use the download button to access the XF3M-1815-1B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XF3M-, or try a keyword search, such as Headers and Edge Type Connectors
