Part Image

XF3M-3015-1B - Omron Electronics

Description: Conn FFC/FPC Connector F 30 POS 0.5mm Solder RA SMD T/R

Download XF3M-3015-1B Model

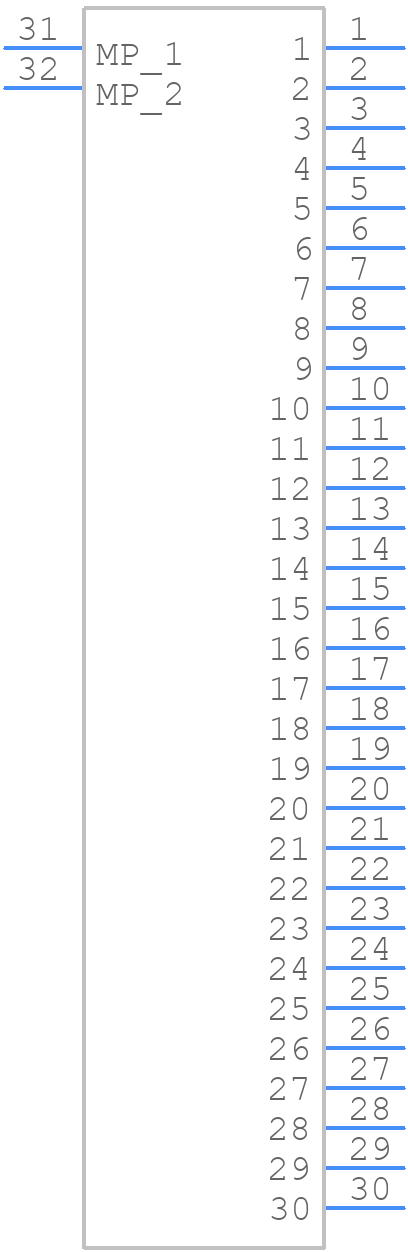

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XF3M-3015-1B - Omron Electronics PCB footprint - Other - Other - XF3M-3015-1B-1
click to zoom
3D Models
XF3M-3015-1B - Omron Electronics  - 3D model - Other - XF3M-3015-1B-1
click to zoom

XF3M-3015-1B Details

  • Manufacturer Part Number:

    XF3M-3015-1B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    OMRON Corporation

  • YTEOL:

    8

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.224 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    20 Cycles

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.02 inch

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.508 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XF3M-3015-1B Overview

Use the download button to access the XF3M-3015-1B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XF3M-, or try a keyword search, such as Headers and Edge Type Connectors
