XG2A-1601 footprint, schematic symbol and 3D model by OMRON Electronics

Symbol

click to zoom

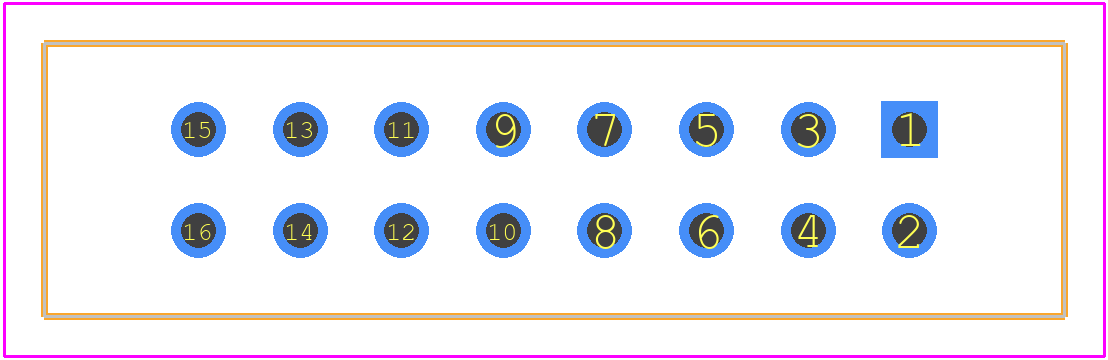

PCB Footprints

XG2A-1601 - OMRON Electronics PCB footprint - Other - Other - XG2A-1601-1

click to zoom

3D Models

XG2A-1601 - OMRON Electronics - 3D model - Other - XG2A-1601-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XG2A-1601
Part Number XG2A-1601
Manufacturer OMRON Electronics
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - XG2A-1601-1
Released Date Apr 11, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

XG2A-1601 Details

Manufacturer Part Number:
XG2A-1601
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
111 Weeks
Manufacturer:
OMRON Electronic Components
YTEOL:
10
Body Breadth:
0.268 inch
Body Depth:
0.228 inch
Body Length:
1.004 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
DIN Conformance:
NO
Dielectric Withstanding Voltage:
500VAC V
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Length:
0.126 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
16
UL Flammability Code:
94V-0

XG2A-1601 Frequently Asked Questions (FAQs)

Omron recommends a 4-layer PCB with a solid ground plane and a separate power plane for the XG2A-1601. The device should be placed near the center of the board, and the input and output traces should be kept short and away from noise sources.
Omron provides a calibration procedure in the datasheet, which involves applying a known input signal and adjusting the internal gain and offset registers to achieve the desired output. Additionally, Omron recommends using a calibration software tool or consulting with an Omron application engineer for assistance.
The XG2A-1601 is rated for operation from -40°C to 125°C, but Omron recommends derating the device for extended operation above 85°C to ensure reliability and accuracy.
Yes, the XG2A-1601 is designed to withstand vibrations up to 10G and shocks up to 100G, but Omron recommends following proper mounting and soldering procedures to ensure the device remains securely attached to the PCB.
Omron recommends checking the power supply voltage, input signal integrity, and PCB layout for noise sources. Additionally, Omron provides a troubleshooting guide in the datasheet and recommends consulting with an Omron application engineer for assistance.
