XG2A-2001 footprint, schematic symbol and 3D model by OMRON Electronics

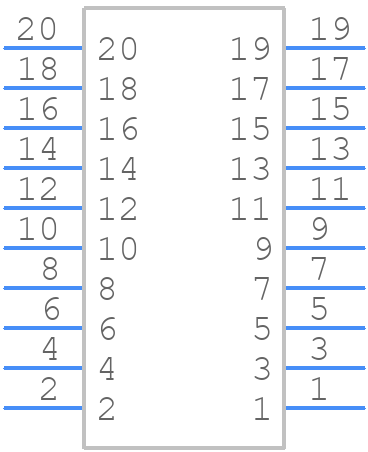

Symbol

click to zoom

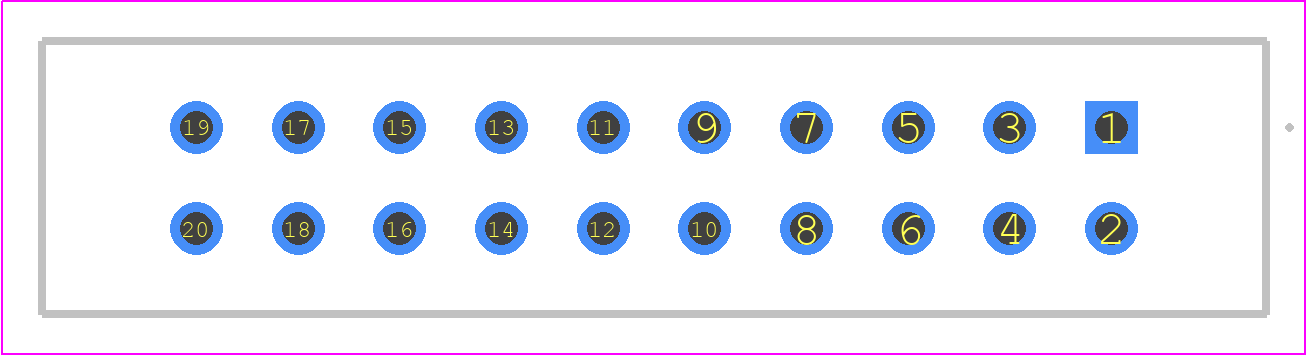

PCB Footprints

XG2A-2001 - OMRON Electronics PCB footprint - Other - Other - XG2A-2001

click to zoom

3D Models

XG2A-2001 - OMRON Electronics - 3D model - Other - XG2A-2001

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XG2A-2001
Part Number XG2A-2001
Manufacturer OMRON Electronics
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - XG2A-2001
Released Date Aug 5, 2026
Last Modified Date Aug 5, 2026 3:14 PM UTC
Pinout / Pin List Click Here (Member Only)

XG2A-2001 Details

Manufacturer Part Number:
XG2A-2001
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
111 Weeks
Manufacturer:
OMRON Electronic Components
YTEOL:
10
Body Breadth:
0.268 inch
Body Depth:
0.228 inch
Body Length:
1.205 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
DIN Conformance:
NO
Dielectric Withstanding Voltage:
500VAC V
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Length:
0.126 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
20
UL Flammability Code:
94V-0

XG2A-2001 Frequently Asked Questions (FAQs)

Omron recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Keep the PCB layout symmetrical and avoid routing high-frequency signals near the XG2A-2001.
Use shielded cables, twisted pairs, and implement proper grounding and earthing. Ensure the communication protocol is robust and error-checked. Consider using noise filters or common-mode chokes to reduce electromagnetic interference (EMI).
The maximum cable length depends on the communication protocol and frequency. For RS-485, the recommended maximum cable length is 1200 meters. For other protocols, consult Omron's application notes or contact their support team.
Check the sensor output voltage and current levels. Verify the sensor is properly connected and configured. Use Omron's diagnostic tools or software to monitor the sensor's status and output. Consult the datasheet and application notes for troubleshooting guidelines.
The XG2A-2001 is not designed for use in hazardous locations or explosive atmospheres. If you need a sensor for such environments, consult Omron's product lineup for ATEX or IECEx certified products or contact their support team for guidance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

XG2A-2001 Overview

Use the download button to access the XG2A-2001 schematic symbol, PCB footprint, and 3D model.
