Omron recommends a 4-layer PCB with a solid ground plane and a separate power plane for the XG2A-2601. The device should be placed near the center of the board, and the input and output traces should be kept short and away from noise sources.
To ensure reliable communication, use a dedicated communication line, avoid using long cables, and implement error checking and correction mechanisms in your firmware. Also, make sure to follow the recommended communication protocol and baud rate specified in the datasheet.
The XG2A-2601 can operate in a temperature range of -40°C to 85°C. However, Omron recommends operating the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
The XG2A-2601 is not designed for use in humid or high-moisture environments. Omron recommends using the device in a dry, clean environment with a relative humidity of 60% or less. If you need to use the device in a humid environment, consider using a conformal coating or other environmental protection measures.
To troubleshoot issues with the XG2A-2601, start by checking the power supply voltage, communication lines, and firmware configuration. Use a logic analyzer or oscilloscope to verify the communication signals and check for any errors or anomalies. Consult the datasheet and Omron's technical support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XG2A-2601 Overview

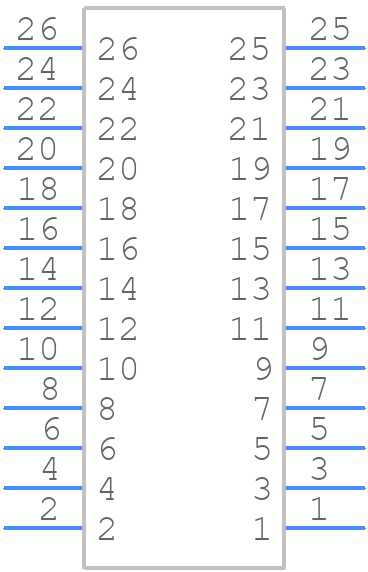

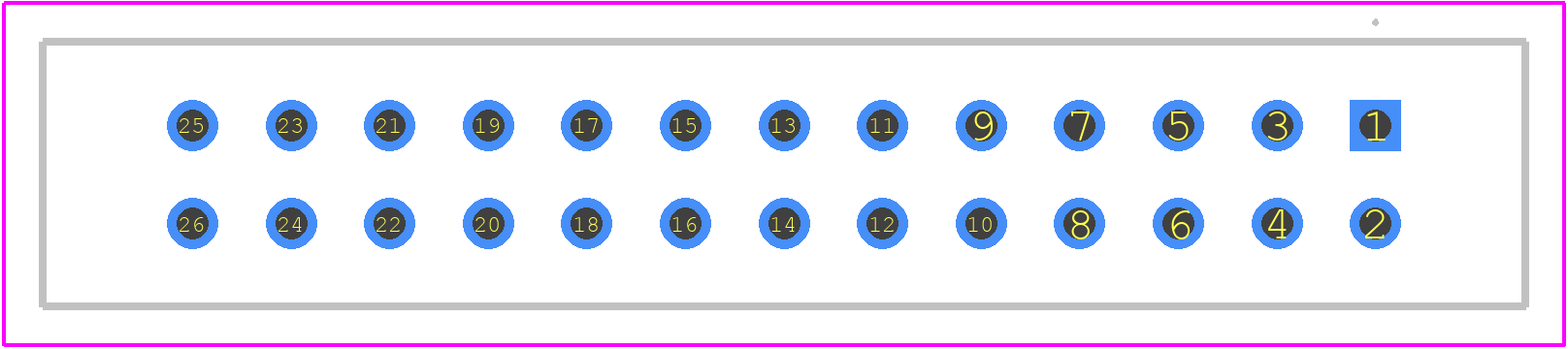

Use the download button to access the XG2A-2601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XG2A-,
or try a keyword search, such as Headers and Edge Type Connectors
