XG4A-1434 - OMRON Electronics

Description: Flat Cable Connectors, MIL Plug with Long Lock Type, 1 Slot, Right-Angle DIP Terminal, Contacts 14

Download XG4A-1434 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

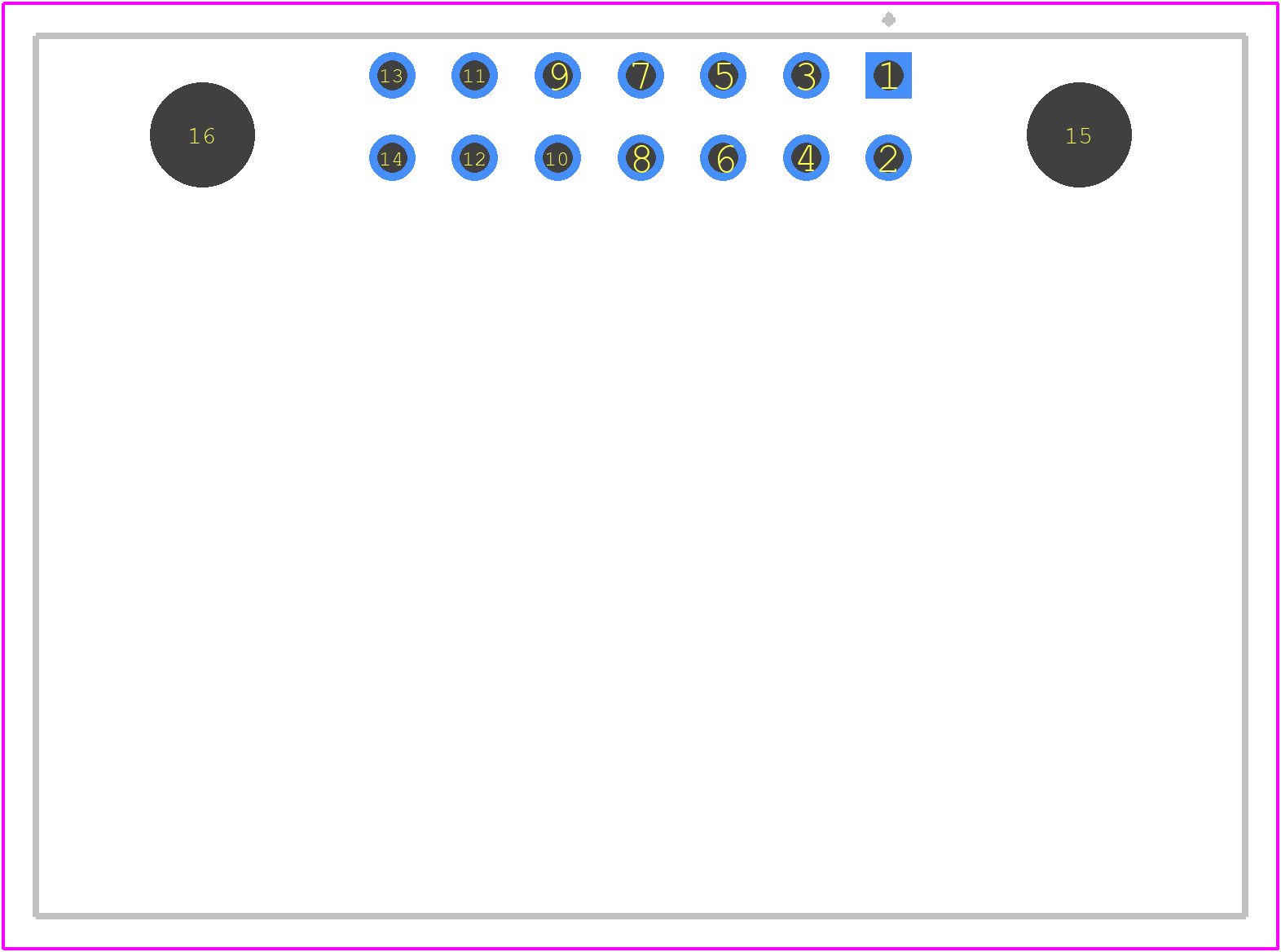

XG4A-1434 - OMRON Electronics PCB footprint - Other - Other - XG4A-1434
click to zoom
3D Models
XG4A-1434 - OMRON Electronics  - 3D model - Other - XG4A-1434
click to zoom

XG4A-1434 Details

  • Manufacturer Part Number:

    XG4A-1434

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    9.1

  • Additional Feature:

    STANDARD: MIL-C-83503

  • Board Mounting Option:

    HOLE .126

  • Body Breadth:

    0.335 inch

  • Body Depth:

    0.67 inch

  • Body Length:

    1.46 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (6)

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    1.96 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    6u inch

  • Polarization Key:

    POLARIZED KEY

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    MIL; UL

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.39 N
