Omron recommends a 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB. Additionally, a thermal pad on the bottom of the device should be connected to a thermal relief pattern on the PCB.
To ensure reliable communication, Omron recommends using a shielded cable, keeping the cable length as short as possible, and using a common mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, implementing error-checking mechanisms, such as CRC or checksum, can help detect and correct data transmission errors.
The XG4A-3034 is rated for operation from -40°C to 85°C. While the device can operate within this range, its performance may degrade at higher temperatures. Omron recommends derating the device's output current and voltage at temperatures above 70°C to ensure reliable operation.
Omron recommends using a logic analyzer or oscilloscope to monitor the device's output signals and communication protocols. Additionally, checking the device's power supply, clock signal, and reset pin can help identify issues. Omron also provides a troubleshooting guide and application notes that can aid in diagnosing and resolving common issues.
Yes, Omron recommends handling the XG4A-3034 with care to avoid static electricity damage. The device should be stored in an anti-static bag or wrapped in anti-static material. Additionally, the device should be operated within its specified voltage and current ratings to avoid overheating or electrical shock. Omron also recommends following proper soldering and desoldering techniques to avoid damaging the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XG4A-3034 Overview

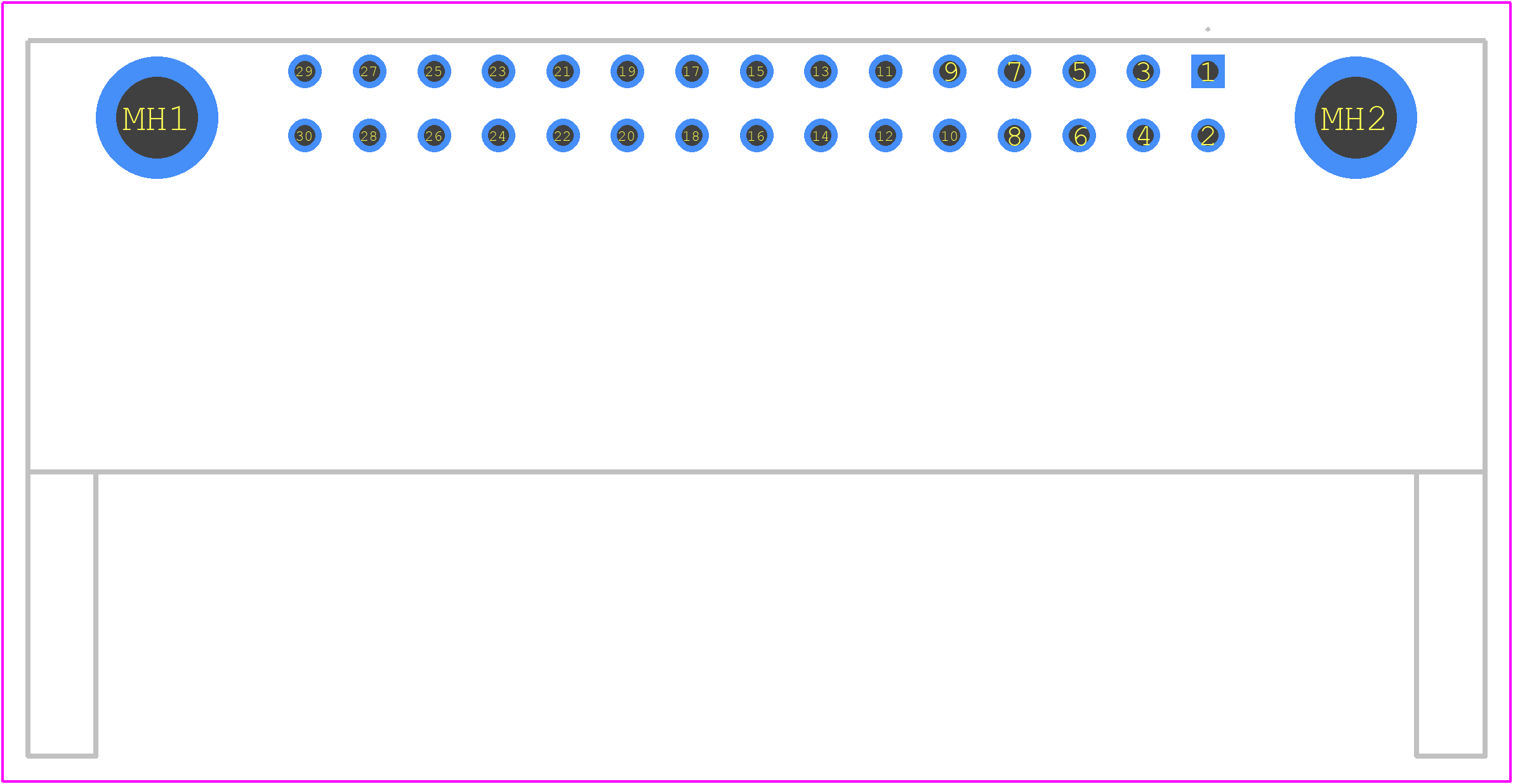

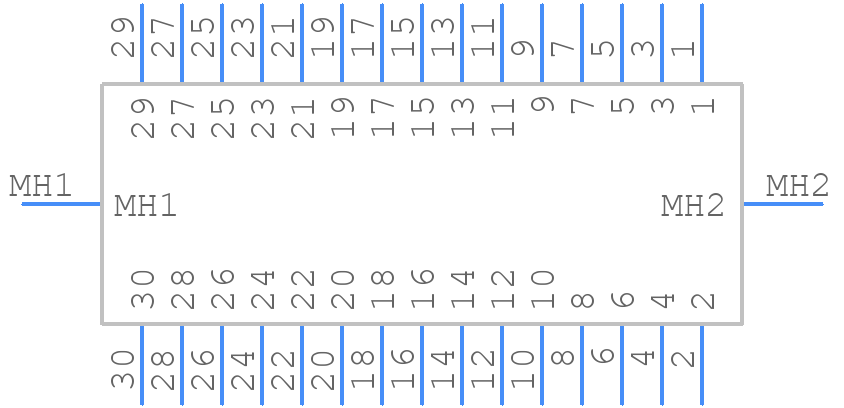

Use the download button to access the XG4A-3034 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XG4A-,
or try a keyword search, such as Headers and Edge Type Connectors
