XG4C-4034 - OMRON Electronics

Description: Headers & Wire Housings MIL BoxType Plug 40P RightAngle 1Polarize

Download XG4C-4034 Model

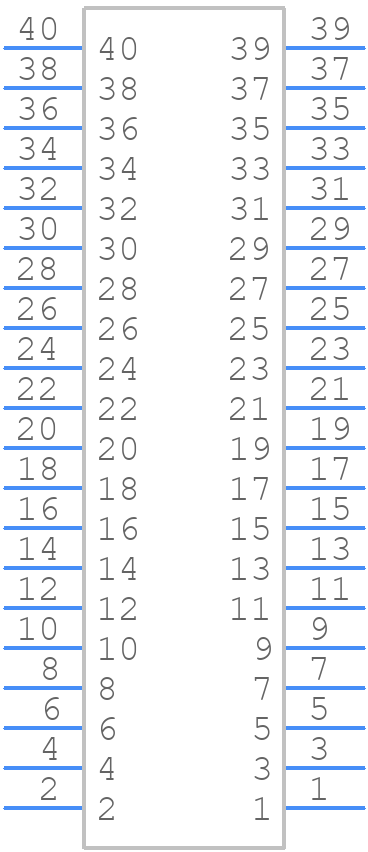

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

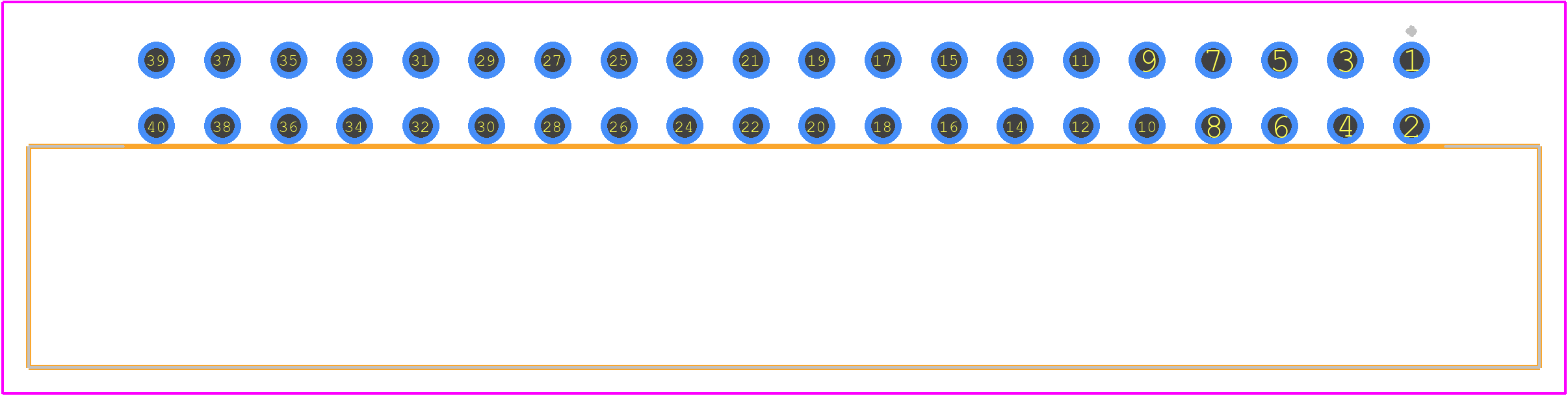

XG4C-4034 - OMRON Electronics PCB footprint - Other - Other - XG4C-4034-3
click to zoom
3D Models
XG4C-4034 - OMRON Electronics  - 3D model - Other - XG4C-4034-3
click to zoom

XG4C-4034 Details

  • Manufacturer Part Number:

    XG4C-4034

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    9.1

  • Additional Feature:

    STANDARD: MIL-C-83503

  • Body Breadth:

    0.323 inch

  • Body Depth:

    0.466 inch

  • Body Length:

    2.287 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    1.96 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    6u inch

  • Polarization Key:

    POLARIZED KEY

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    MIL; UL

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.39 N

XG4C-4034 Frequently Asked Questions (FAQs)

  • Omron recommends a 4-layer PCB with a solid ground plane and a thermal via under the IC to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the IC should be connected to a large copper area on the PCB to improve heat dissipation.
  • To ensure reliable communication, Omron recommends using a shielded cable, twisted pair wiring, and implementing noise reduction techniques such as common-mode chokes and ferrite beads. Additionally, consider using a communication protocol with error detection and correction mechanisms, such as CRC or checksum.
  • The maximum cable length for the XG4C-4034's communication interfaces depends on the specific interface and the environment. For RS-485, the maximum cable length is approximately 1200 meters. For Ethernet, the maximum cable length is 100 meters. However, these lengths can be affected by factors such as cable quality, noise, and termination.
  • To troubleshoot communication issues, Omron recommends checking the cable connections, verifying the communication settings and protocol, and using a protocol analyzer or oscilloscope to monitor the signal. Additionally, check the XG4C-4034's status indicators, such as the LED lights, to identify any error conditions.
  • The XG4C-4034's performance and reliability can be affected by environmental factors such as temperature, humidity, vibration, and electromagnetic interference. Operating conditions such as power supply voltage, noise, and signal integrity can also impact performance. Ensure that the XG4C-4034 is operated within the specified ratings and guidelines to maintain optimal performance and reliability.
