XG4H-2631 - OMRON Electronics

Description: Headers & Wire Housings BtoB Socket 26Pin Straight 1Polarize

Download XG4H-2631 Model

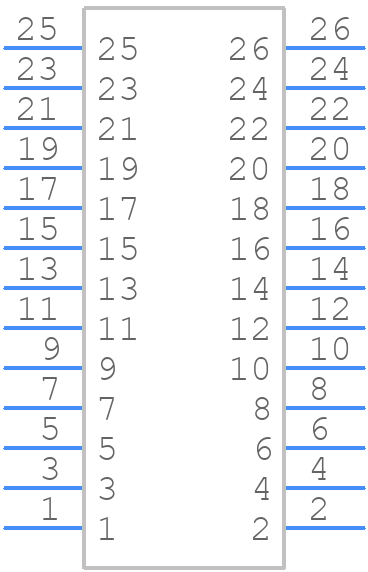

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

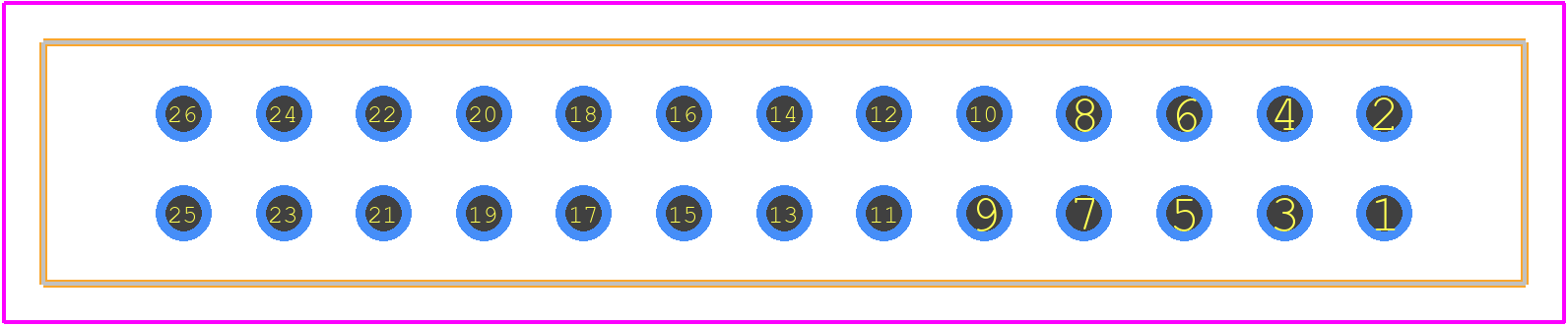

XG4H-2631 - OMRON Electronics PCB footprint - Other - Other - XG4H-2631-2
click to zoom
3D Models
XG4H-2631 - OMRON Electronics  - 3D model - Other - XG4H-2631-2
click to zoom

XG4H-2631 Details

  • Manufacturer Part Number:

    XG4H-2631

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    9.1

  • Additional Feature:

    STANDARD: MIL-C-83503

  • Body Breadth:

    0.24 inch

  • Body Depth:

    0.283 inch

  • Body Length:

    1.48 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    1.96 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    6u inch

  • Polarization Key:

    POLARIZED KEY

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    MIL; UL

  • Terminal Length:

    0.122 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.39 N

XG4H-2631 Frequently Asked Questions (FAQs)

  • Omron recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal plane on the PCB.
  • To ensure reliable communication, Omron recommends using a differential signal transmission line with a characteristic impedance of 100 ohms, and terminating the transmission line with a 100 ohm resistor. Additionally, the communication clock frequency should be within the specified range of 10 kHz to 100 kHz.
  • The maximum allowable voltage on the output pins is VCC + 0.5V, but it's recommended to keep the output voltage within the specified range of 0V to VCC to ensure reliable operation.
  • The XG4H-2631 has an internal POR and BOR circuitry. The POR function resets the device when the power supply voltage is below the specified threshold, and the BOR function resets the device when the power supply voltage drops below the specified threshold during operation. To handle these functions, ensure that the power supply voltage is stable and within the specified range, and add external circuitry if necessary to filter out noise and voltage fluctuations.
  • Omron recommends storing the XG4H-2631 in a dry, clean environment with a temperature range of -40°C to 125°C and a humidity range of 20% to 80% RH. Avoid storing the device in direct sunlight, high-temperature environments, or areas with high humidity.
