Omron recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal plane on the PCB.
To ensure reliable communication, use a shielded cable, and implement proper grounding and shielding techniques. Also, consider using a common-mode choke or a ferrite bead to filter out electromagnetic interference (EMI). Additionally, implement error-checking mechanisms, such as CRC or checksum, to detect data corruption.
The maximum cable length for the XG4H-6431's communication interface depends on the specific interface used (e.g., RS-232, RS-485, or Ethernet). As a general guideline, Omron recommends keeping cable lengths below 100 meters for RS-232 and RS-485, and below 1000 meters for Ethernet. However, the actual maximum cable length may vary depending on the specific application and environment.
To troubleshoot communication issues, first, verify that the device is properly powered and configured. Check the communication settings, such as baud rate, parity, and stop bits, to ensure they match the device's settings. Use a logic analyzer or a protocol analyzer to capture and analyze the communication signals. Also, check for any error messages or status indicators on the device or in the communication logs.
The XG4H-6431 is designed to operate in a temperature range of -20°C to 70°C, with a relative humidity of 5% to 95%. It can withstand vibrations up to 10 G and shocks up to 15 G. However, Omron recommends operating the device within a temperature range of 0°C to 50°C for optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XG4H-6431 Overview

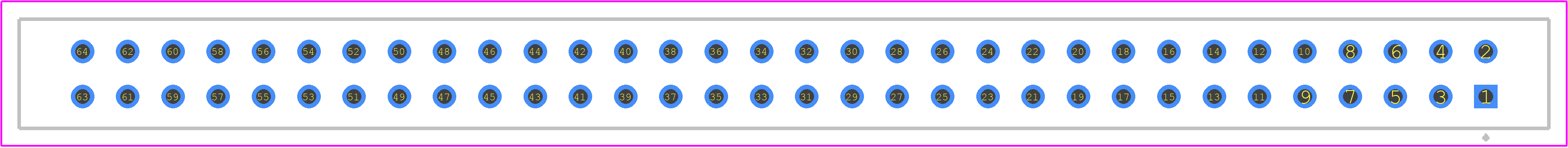

Use the download button to access the XG4H-6431 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XG4H-,
or try a keyword search, such as Headers and Edge Type Connectors
