Omron recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Keep the PCB layout symmetrical and avoid routing high-frequency signals near the XG8W-1441.
Use shielded cables, twisted pairs, and implement proper grounding and earthing. Ensure that the XG8W-1441 is properly configured for the specific communication protocol and baud rate. Implement error-checking and correction mechanisms, such as CRC and retransmission, to ensure reliable data transfer.
Use a high-quality, low-ESR capacitor (e.g., 10uF, 50V) for power supply decoupling. Add a ferrite bead or common-mode choke to filter out high-frequency noise. Ensure that the power supply voltage is within the recommended range (3.3V ± 10%) and that the XG8W-1441 is properly grounded.
Use a logic analyzer or oscilloscope to monitor the communication signals. Check the power supply voltage, clock signal, and reset pin. Verify that the XG8W-1441 is properly configured and that the firmware is up-to-date. Consult Omron's application notes and technical support resources for guidance.
The XG8W-1441 is rated for operation in temperatures between -40°C and 85°C. Avoid exposing it to extreme temperatures, humidity, or vibration. Ensure that the device is properly sealed and protected from moisture, dust, and other environmental factors that may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XG8W-1441 Overview

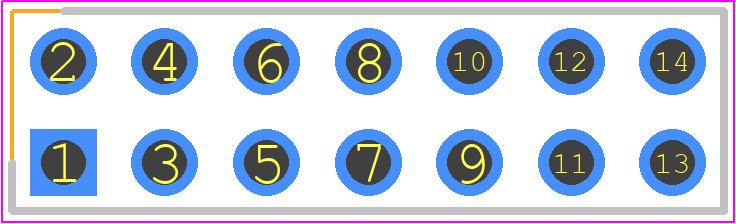

Use the download button to access the XG8W-1441 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XG8W-,
or try a keyword search, such as Headers and Edge Type Connectors
